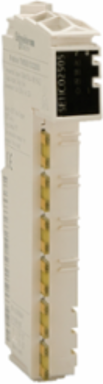

Schneider Electric TM5SE1IC20005 Counter Module - 4 MHz Frequency, 0.025 kg, 2 x 24 V DC Inputs
- MPN: TM5SE1IC20005
- PPN: SCH-TM5SE1IC20005
CAD
$973.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This counter module from Schneider Electric is engineered for precision and efficiency, operating at a frequency of 4 MHz. Designed to accept two separate 24 V DC inputs, it offers versatile functionality suitable for various automation and monitoring applications. With its compact design and robust performance, this module is an essential component for enhancing control systems in industrial environments, ensuring reliability and accuracy in data processing and measurement tasks.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Austria, Brazil
Depth60 mm
Complementary Attributes
- Maximum Cycle Time
- 2 ms
Maximum Power Dissipation In W1.51 W
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Current Consumption
- 2 mA 5 V DC bus, 63 mA 24 V DC input/output
- Resistance To Fast Transients
- 1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 shielded cable)2 kV IEC 61000-4-4 power lines)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.013655386248670175, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.026934615911367, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 61 kg CO2 eq., 60.910953263776626
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Electromagnetic Compatibility
- EN/IEC 61000-4-6
- Isolation
- 500 Vrms AC insulation between channel and bus
- Number Of Functions
- 2
- Product Or Component Type
- counter module
- Resistance To Electromagnetic Fields
- 1 V/m 2...2.7 GHz IEC 61000-4-310 V/m 80...2000 MHz IEC 61000-4-3
- Returnability
- No
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 62 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1511026EN
- Pep Verification Date
- 2025-12-25
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Austria, AT
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Turkey, TR
- Height Nominal
- 101 mm
- Disturbance Radiated/Conducted
- CISPR 11
- Package Weight(Lbs)
- 39.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Function Of Module2 x 24 V DC RS422 sink auxiliary inputs, 24 V DC encoder power supply
Certificate AgencycULus, C-tick, GOST-R, CSA
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.06221197119903745
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.3128094835892783
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1511026EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2220
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
Counting Frequency4 MHz
Encoder Type1 incremental encoder
MarkingCE
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductModicon TM5
Resistance To Electrostatic Discharge4 kV on contact IEC 61000-4-28 kV in air IEC 61000-4-2
Shock Resistance15 gn 11 ms
Sustainable PackagingNo
Vibration Resistance1 gn 8.4-150 Hz DIN rail3.5 mm 5-8.4 Hz DIN rail
Dc Supply Voltage24-24 V
Database Version2024-01
Pcr VersionPCR-4-ed4-FR-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo manage digital or analog I/O signal 100% of the time for 10 years with dissipation power of 1.51W.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh132.276
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal20 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code9029108000
Environment Attributes Main
- Ambient Air Temperature For Operation
- 0-55 °C without derating horizontal installation), 0-60 °C with derating factor horizontal installation), 0-50 °C vertical installation)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1511026EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Free Of Svhc
- Yes
- Relative Humidity
- 5-95 % without condensation
- Pep Code
- ENVPEP1511026EN
- Pcr Version
- PCR-4-ed4-FR-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Carbon Footprint62.32656472072498
Environmental DisclosureENVPEP1511026EN
Ip Degree Of ProtectionIP20IEC 61131-2
Packaging Made With Recycled CardboardNo
Product Compatibilitymotion controller
Reach RegulationFree of Substances of Very High Concern above the threshold
Storage Altitude0-3000 m
Pep Verification Date2025-12-25
Psr VersionPSR-0005-ed3-EN-2023 06 06
General Attributes
- Product Or Component Type
- counter module
Range Of ProductModicon TM5
ETIM
- ETIM 8
- EC001601
ETIM 9EC001601
Surge Protection And Filtering Attributes
- Surge Withstand
- 0.5 kV differential mode IEC 61000-4-51 kV common mode IEC 61000-4-5
Input Attributes
- Input Filtering
- <= 200 ms, <= 200 ms
- Discrete Input Current
- 24 V
- Discrete Input Number
- 2
Counter Inputs Resolution16 bits/32 bits
Discrete Input Logicsink
Discrete Input Voltage24 V DC
