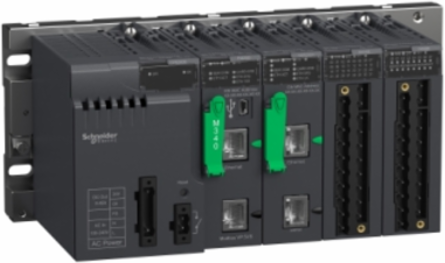

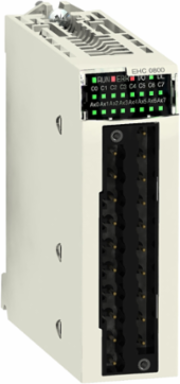

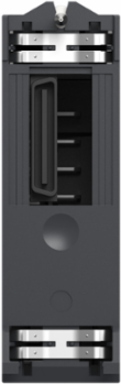

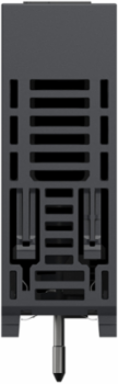

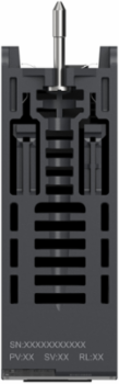

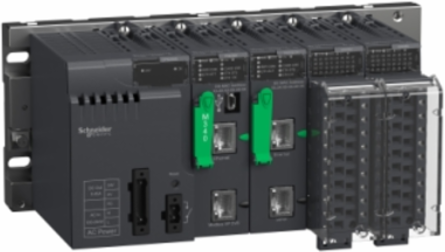

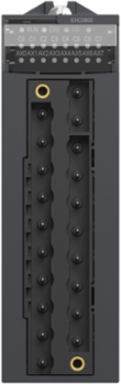

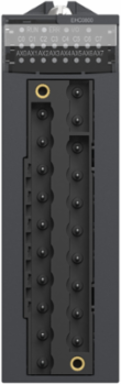

Schneider Electric BMXEHC0800 Modicon M340 High Speed Counter Module, 8 Channels, 24V DC, IP20
- MPN: BMXEHC0800
- PPN: SCH-BMXEHC0800
CAD
$2388.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This high speed counter module has 8 channels, 2 single mode inputs and 3 special dual phase mode inputs. It is a counter module with an input voltage of 24V DC and a current consumption of 200mA at 3.3V DC bus, 80mA at 24V DC sensor. Counter functions are loop (modulo) counting, down counting, count events, 32bit counter counting etc. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.113kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 19.2V to 30V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10V to 30V totem pole. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Complementary Attributes
- Maximum Counting Frequency
- 10000 Hz
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Counter Functions
- up/down counter, 32-bit counter counting, frequency meter, loop (modulo) counting, count events, down counting
- Current State 0 Guaranteed
- < 1.5 mA, < 1.5 mA
- Protective Treatment
- standard version, standard version
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0186992, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0380778667, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 83 kg CO2 eq., 83.2725251397
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Electrical Connection
- 1 connector 20 pins
- Module Format
- standard
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Modicon M340 automation platform
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 102 kg CO2 eq.
- Pep Code
- ENVPEP2311046EN
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Recyclability Potential In %
- 3
- Package Weight(Lbs)
- 143.0 g
- Warranty (In Months)
- 18
- Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
- 231.478
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
- 38641.2
- Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 49041.2
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 224.458
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 23667.8
- Customs Code
- 8538908180
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Current Consumption200 mA 3.3 V DC bus, 80 mA 24 V DC sensor
Current State 1 Guaranteed> 2 mA (for U >= 11V), > 2 mA (for U >= 11V)> 2 mA (for U >= 11V), > 2 mA (for U >= 11V)
Voltage State 0 Guaranteed< 5 V DC, < 5 V DC< 5 V DC, < 5 V DC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.2537426667
Carbon Footprint Of The Manufacturing Phase [A1 To A3]18 kg CO2 eq., 18.2710666667
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2311046EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2438
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationIndustrial
Cycle Time5 ms
Isolation Voltage1500 V 60 s
Number Of Channels8
Product Or Component Typecounter module
ReturnabilityYes
Sustainable PackagingYes
Voltage State 1 Guaranteed11...30 V DC
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh127.7208
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Nbr. Of Units In Pkg.1
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]216.32
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]75.0022
Net Use Of Fresh Water (M3) End Of Life [C1-c4]10012.6
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]216.32
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle23667.8
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]213.954
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-60 °C
- Environmental Disclosure
- ENVPEP2311046EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 10-95 % without condensation
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
China Rohs RegulationX
Carbon Footprint101.8541115397
Circularity ProfileENVEOLI2311046EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2311046EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- counter module
Range Of ProductModicon M340 automation platform
ETIM
- ETIM 8
- EC001422
ETIM 9EC001422
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Compatibility
- 19.2-30 V 2-wire/3-wire proximity sensorincremental encoder with push-pull outputs, 10...30 V totem pole
- Input Type
- high speed
- Input Voltage Limits
- 24 V DC
Input Current4.5 mA
Input Voltage24 V DC type 3
Number Of Inputs2-2 single mode)3-3 special dual phase mode)
