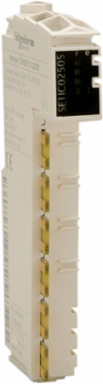

Schneider Electric TM5SDI2DF Modicon TM5 Counter Module, 2 Inputs, 24 V DC, 50 kHz

MPN: TM5SDI2DF
PPN: SCH-TM5SDI2DF
UNSPSC: 32151703

$114.05

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This counter module provides 2 counter inputs for event counting and interval measurement. Its counting frequency is 50kHz per channel. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. The inputs type is 1-, 2-, or 3-wire. It is an IP20 rated product. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Features

Modicon TM5 system provides flexible/scalable configurations of remote/distributed IO islands to Modicon controllers
Fully developped for Packaging, Material Working , Material Handling and Machine Control Solutions
Modicon TM5 system offers a wide variety of IO enabling to meet desired configuration, while reducing costs
Modicon TM5 is characterized by easy cabling and maintenance

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Austria
Depth	75 mm

Weight	36 g

Complementary Attributes

Maximum Power Dissipation In W	0.97 W

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Current Consumption	30 mA 5 V DC bus, 34 mA 24 V DC input/output
Isolation	500 Vrms AC insulation between channel and bus, no insulation between channels
Resistance To Fast Transients	1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 shielded cable)2 kV IEC 61000-4-4 power lines)
Carbon Footprint Of The Distribution Phase A4	0.012604971921849393, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.02486272237972339
Carbon Footprint Of The Use Phase B2 B3 B4 B6	39 kg CO2 eq., 39.12822825553862
Local Publishable Date	2026-01-12
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Counting Frequency	50 kHz
Front Installation Possible	false
Network Type	DC
Optical Interface Present	false
Product Or Component Type	counter module
Radio Standard Gprs	false
Radio Standard Umts	false
Resistance To Electromagnetic Fields	1 V/m 2...2.7 GHz IEC 61000-4-310 V/m 80...2000 MHz IEC 61000-4-3
Returnability	No
Software Version	v6.2.5-6
Supporting Protocol For Can	false
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	false
Supporting Protocol For Profibus	false
Supporting Protocol For Profinet Io	false
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Total Lifecycle Carbon Footprint	40 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Certified For Ul Hazardous Location Class Ii	false
Certified For Ul Hazardous Location Division 1	false
Dc Supply Voltage	24-24 V
Contactor Control Function Block	false
Function Block Access Control	false
Function Block Automatic Reset	false
Function Block Emergency Stop	false
Function Block Restart Blockage	false
Database Version	2024-01
Height Nominal	99 mm
Disturbance Radiated/Conducted	CISPR 11
Supporting Protocol For Tcp/Ip	false
Nbr. Of Units In Pkg.	1
Appendant Operation Agent Ex Ia	false
Certified For Ul Hazardous Location Group A Acetylene	false
Certified For Ul Hazardous Location Group C Ethylene	false
Certified For Ul Hazardous Location Group E Metal Dusts	false
Certified For Ul Hazardous Location Group G Non Conductive Dust	false
Io Link Master Present	false
Rack Assembly Possible	false
Supporting Protocol For As Interface Safety At Work	false
Supporting Protocol For Interbus Safety	false
Functional Unit Description	To manage digital or analog I/O signal 100% of the time for 10 years with dissipation power of 1.51W.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	84.972

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Function Of Module	interval measurement, event counting
Product Specific Application	frequency meter, period measurement, frequency generator, upcounting, downcounting
Certificate Agency	CSA, GOST-R, cULus, C-tick
Carbon Footprint Of The End Of Life Phase C1 To C4	0.05742643495295765, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	1 kg CO2 eq., 1.2118241386977955
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	IDIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1511026EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Advanced
Market Segmentation	Industrial
Bearing Track Assembly Possible	true
Electromagnetic Compatibility	EN/IEC 61000-4-6
Marking	CE
Number Of Functions	5
Product Availability	Non-Stock - Not normally stocked in distribution facility
Radio Standard Bluetooth	false
Radio Standard Gsm	false
Range Of Product	Modicon TM5
Resistance To Electrostatic Discharge	4 kV on contact IEC 61000-4-28 kV in air IEC 61000-4-2
Shock Resistance	15 gn 11 ms
Supporting Protocol For Asi	false
Supporting Protocol For Devicenet	false
Supporting Protocol For Ethercat	false
Supporting Protocol For Interbus	false
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	false
Supporting Protocol For Profinet Cba	false
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	No
Vibration Resistance	1 gn 8.4-150 Hz DIN rail3.5 mm 5-8.4 Hz DIN rail
Certified For Ul Hazardous Location Class I	false
Certified For Ul Hazardous Location Class Iii	false
Certified For Ul Hazardous Location Division 2	false
Fieldbus Connection Over Separate Bus Coupler Possible	false
Frequency Measurement	true
Function Block Affirm Pushbutton	false
Function Block Contactless Working Protection Installation	false
Function Block Operating Mode Selection	false
System Accessory	false
Data Source	extrapolated product
Width Nominal	12.5 mm
Supporting Protocol For Ethernet/Ip	false
Wall Mounting/Direct Mounting Possible	false
Customs Code	8538908180
Appendant Operation Agent Ex Ib	false
Certified For Ul Hazardous Location Group B Hydrogen	false
Certified For Ul Hazardous Location Group D Propane	false
Certified For Ul Hazardous Location Group F Carbonaceous Dust	false
Function Block 2 Hand Switching	false
Performance Level According To En Iso 13849 1	none
Radio Standard Wi Fi 802.11	false
Supporting Protocol For Data Highway	false
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	0-55 °C without derating horizontal installation), 0-60 °C with derating factor horizontal installation), 0-50 °C vertical installation)
Ip Degree Of Protection	IP20IEC 61131-2, IP20
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	40.43494652349095
Environmental Disclosure	ENVPEP1511026EN
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Storage Altitude	0-3000 m
Pep Verification Date	2025-12-25
Psr Version	PSR-0005-ed3-EN-2023 06 06

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Product Compatibility	logic controller, motion controller
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI1511026EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Relative Humidity	5-95 % without condensation
Pep Code	ENVPEP1511026EN
Pcr Version	PCR-4-ed4-FR-2021 09 06
Type Of Verification For The Pep	Independent internal review

General Attributes

Product Or Component Type	counter module

Range Of Product	Modicon TM5

ETIM

ETIM 8	EC001601
ETIM 10	EC001601

ETIM 9	EC001601

Surge Protection And Filtering Attributes

Surge Withstand	0.5 kV differential mode IEC 61000-4-51 kV common mode IEC 61000-4-5

Contractual Warranty Attributes

Warranty Period	18 months

Warranty	18 months

Input Attributes

Input Filtering	<= 10 ms hardware, <= 10 ms hardware, <= 25 ms configurable by software, <= 25 ms configurable by software, <= 10 ms hardware, <= 10 ms hardware, <= 25 ms configurable by software, <= 25 ms configurable by software
Discrete Input Logic	sink
Discrete Input Voltage	24 V DC
