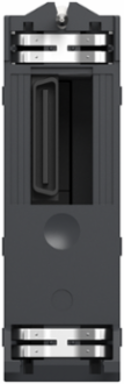

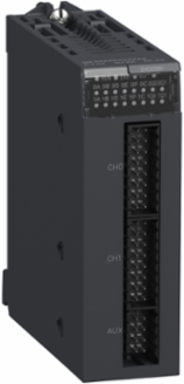

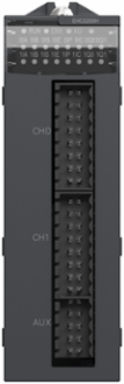

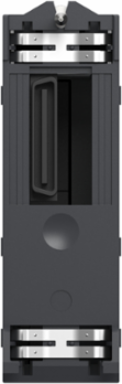

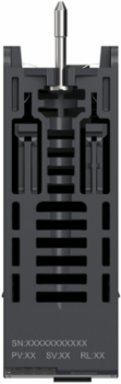

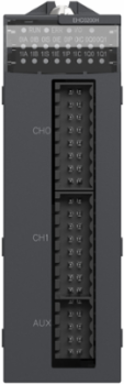

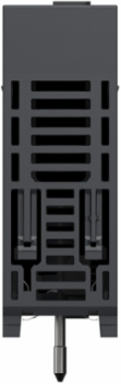

Schneider Electric BMXEHC0200H Modicon M340 Counter Module, 2 Channels, High Speed, IP20

MPN: BMXEHC0200H
PPN: SCH-BMXEHC0200H
UNSPSC: 32151705

$1887.31

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Designed to enhance automation processes, this counter module from Schneider Electric provides high-speed counting capabilities across two channels. Part of the Modicon M340 series, it is well-suited for industrial applications where precise monitoring and control are essential. The module s IP20 rating ensures it is optimal for installation in protected environments, making it a reliable component for various machinery and systems. With its advanced functionality, this module plays a vital role in elevating the efficiency and accuracy of automated operations.

Features

Cost-effective modernization and migration
Reduce time to market
Process efficiency
Easy Maintenance

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Complementary Attributes

Maximum Voltage Drop	<3 V at state 1, <3 V at state 1<3 V at state 1, <3 V at state 1
Maximum Leakage Current	0.1 mA at state 0
Maximum Output Current	2 A per module0.5 A per output

Maximum Counting Frequency	60000 Hz
Maximum Load Current	1 A per module0.5 A per output

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Counter Functions	ratio count, frequency meter, down counting, 32-bit counter counting, loop (modulo) counting, measure time periods, count events, width modulation
Current State 0 Guaranteed	< 1.5 mA, < 1.5 mA
Electrical Connection	1 connector 10 pins for wiring auxiliary input and sensor power supply1 connector 16 pins for wiring the sensors of counter 0, 1 connector 16 pins for wiring the sensors of counter 1
Protective Treatment	conformal coating, conformal coating
Certificate Agency	CE, UL, CSA, RCM, EAC, Merchant Navy
Local Publishable Date	2026-06-14
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Isolation Voltage	1500 V 60 s
Number Of Channels	2
Product Availability	Stock - Normally stocked in distribution facility
Product Specific Application	for severe environments
Returnability	Yes
Voltage State 1 Guaranteed	11...30 V DC
Customs Code	8538908180

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Current Consumption	200 mA 3.3 V DC bus, 40 mA 24 V DC rack80 mA 24 V DC sensor
Current State 1 Guaranteed	> 2 mA (for U >= 11V), > 2 mA (for U >= 11V)> 2 mA (for U >= 11V), > 2 mA (for U >= 11V)
Environmental Characteristic	gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2
Voltage State 0 Guaranteed	< 5 V DC, < 5 V DC< 5 V DC, < 5 V DC
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2311046EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2438
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Industrial
Cycle Time	1 ms
Module Format	standard
Overlap Time	0.2 ms
Product Or Component Type	counter module
Range Of Product	Modicon M340 automation platform
Sustainable Packaging	Yes
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI2311046EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2311046EN

Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2311046EN
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	Yes
Relative Humidity	10-95 % without condensation

General Attributes

Product Or Component Type	counter module

Range Of Product	Modicon M340 automation platform

ETIM

ETIM 8	EC001422
ETIM 10	EC001422

ETIM 9	EC001422

Output Attributes

Discrete Output Logic	positive or negative configurable
Output Overload Protection	integrated
Output Voltage Limits	19.2...30 V

Number Of Outputs	2
Output Voltage	24 V DC
Output Short Circuit Protection	1.5 A integrated

Contractual Warranty Attributes

Warranty Period	18 months

Warranty	18 months

Input Attributes

Input Type	3 auxiliary input, 3 high speed
Input Current	2 mA at 11 V
Input Voltage Limits	24 V DC

Input Compatibility	19.2-30 V 2-wire/3-wire proximity sensorincremental encoder with push-pull outputs, 10...30 V totem pole
Input Voltage	24 V DC type 3
Number Of Inputs	6-6
