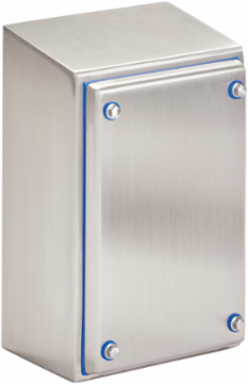

Nvent Hoffman HSDS151208SS HyShed Screw Cover Enclosure 15.13x12.13x8 Inch, Stainless Steel 304, NEMA 12
Nvent Hoffman HSDS151208SS HyShed Screw Cover Enclosure 15.13x12.13x8 Inch, Stainless Steel 304, NEMA 12
- MPN: HSDS151208SS
- UPC: 783510305215
- PPN: HOF-HSDS151208SS
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$1924.46/ EA
Description
HyShed 4X, IP69 enclosures are designed for high pressure temperature washdown in food and beverage. This HyShed Screw Cover Enclosures Type 4X, HSDS151208SS item measures 15.13x12.13x8.00 inches with a material of Stainless Steel 304.
Features
- Brushed #4 finish for dairy applications
- 10-degree sloped top facilitates runoff of water and cleaning solutions; prevents fluids or particulates from pooling
- Door edges are sloped to facilitate runoff
- Replaceable FDA-grade silicone gasket compliant with FDA Guideline 21 CFR 177.2600
- Gasket is sanitary Pantone 287 blue color for easy detection by common food scanning equipment and vision systemsa
- Screw FDA-grade silicone o-ring gasket maintains strong seal; includes captivation mechanism to keep screws in place and prevent over-torquing
- Stainless steel crevice-free screw surfaces to reduce bacteria harboring catch points; uses standard tool to open
- Solid back with no pre-tapped mounting holes for easy weld mounting; optional IP69K sanitary stand-off kit available.
- Seams continuously welded and ground smooth
- Bonding provision on door and body
- Furnished hardware kit consists of panel mounting kit and grounding kit
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 308
- Protection Rating
- NEMA Type 12
- Material
- Stainless Steel 304
- Thickness (T)
- 1.98
- Weight
- 18.1
- NEMA Rating
- 12 Indoor, dust-resistant
Height (H)284
Depth (D)203
Product FamilyHyShed
Finish#4 Dairy
Cover Screw Quantity8
IP RatingIP66
