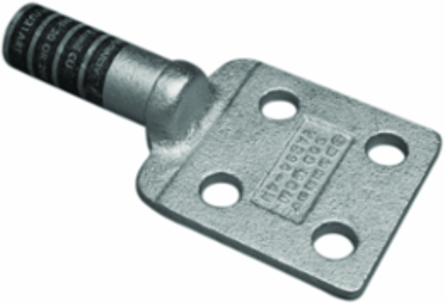

Burndy YAB364N HYLUG Copper Terminal Connector, 4 Hole, Long Barrel, 3.00 Inch Pad Width, 35 kV Rating
- MPN: YAB364N
- UPC: 781810466667
- PPN: BUR-10087404
CAD
$341.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
BURNDY; HYLUG; YA; Features: Four Hole Copper compression, Long Barrel, Code Conductor; For compression connection; RoHS Compatible with Exemption
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 2.69 in
- Dimension - F Width Center to Center inch
- 1.75 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 6.79 in
- Dimension - Outside Diameter inch
- 1.19 in
- Dimension - Strip Length inch
- 2-3/4
- Dimension - Z inch
- 0.63 in
Dimension - D inch3.00 in
Dimension - Hole Size inch0.56 in
Dimension - L Length Overall mm172 mm
Dimension - N inch0.62 in
Dimension - Pad Width inch3.00 in
Dimension - Stud Size inch5/8
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- EX
Certification - ETLNo
Certification - cULusNo
UL ListedNo
Conductor Related
- Conductor - Copper Str Size
- 600 kcmil
- Conductor - Material
- Copper
Conductor - Copper Str Size Range600 kcmil
General
- Color Code
- Green
- Die Index
- 22;472
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 4
- Plating Type
- Tin
- Trade Name
- HYLUG™
- UPC 12 Digit
- 7818104666677
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Temperature Rating194
UPC781810466667
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
