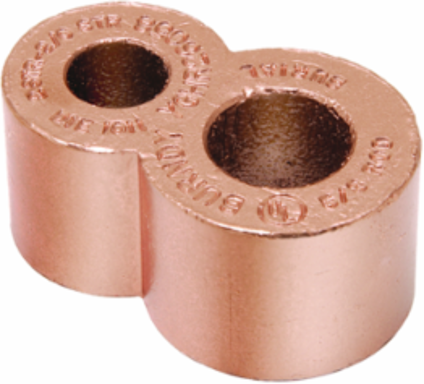

Burndy YGHR29C12 Copper Compression Tap Connector for 1/2 Inch Ground Rod, UL Listed, IEEE 837 Certified
- MPN: YGHR29C12
- UPC: 781810220733
- PPN: BUR-279144
CAD
$105.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
High Strength IrreversibleCompression Ground RodTap Connectors.
Documentation & Downloads
Specifications
Additional

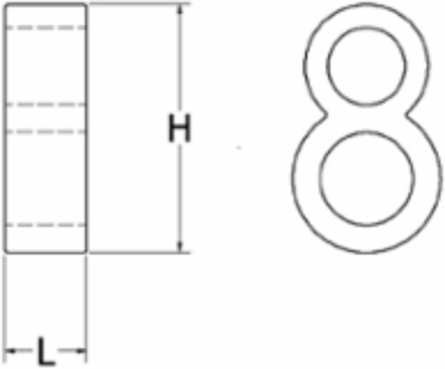

| Conductor Rod Size | 1/2 in |
|---|---|
| Length Overall | 22 mm (0.88 in) |
| Number of Crimps Required | 1 |
| Oxide Inhibitor Type | Penetrox E (Prefilled) |
| Certification - CSA Approved | Yes |
| Certification - cULus | No |
| Standards - RoHS Compliance Status | CM |
| Connector Type | Tap |
| Material | Copper |
|---|---|
| Height | 1.94 in (1-47/50 in) |
| Plating Type | Unplated |
| Certification - UL Listed Direct Burial | Yes |
| UL Listed | Yes |
| Certification - ETL | No |
| Type | Taps |
| Precrimp Die | UPRECRIMP12 |
