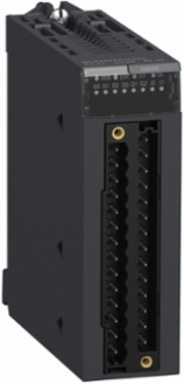

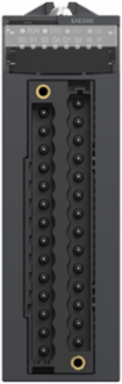

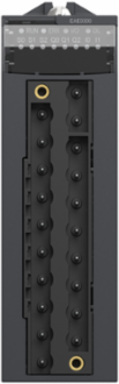

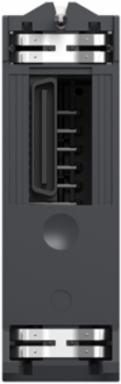

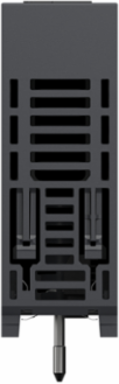

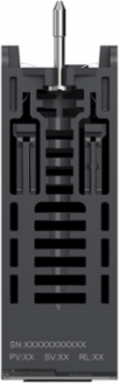

Schneider Electric BMXEAE0300 Encoder Interface Module, 3 SSI Channels, IP20, 1M Baud Rate
- MPN: BMXEAE0300
- PPN: SCH-BMXEAE0300
CAD
$1815.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

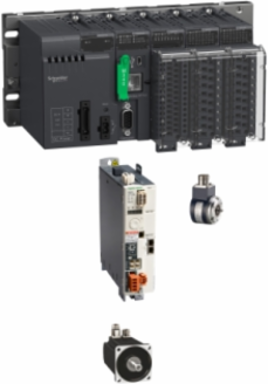

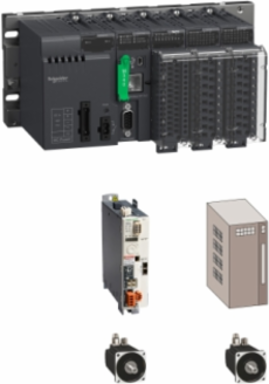

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This encoder interface module has 3 SSI channels. It is an encoder interface module with a rated supply voltage of 24V DC, a current consumption of 250mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. Available functions are offset, compare, modulo, reduction and capture. The transmission rate is 500kbauds, 200kbauds, 1Mbauds, 100kbauds and 8bit to 31bit data format. It is an IP20 rated product. It weighs 0.138kg. It is suitable for medium to large process applications. This product is certified by UL, C-Tick, CSA, GOST, ATEX, CSA, CE, FM Class 1 Division 2, CCS. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input is compatible with 24V DC SSI absolute encoder for 200mA per channel. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Function Available | offset, compare, modulo, reduction, capture |
| Certificate Agency | CE, RCM, CSA, EAC, Merchant Navy, UL |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.3 kg CO2 eq., 0.3016521212 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 22 kg CO2 eq., 21.7208484848 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2311046EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2438 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Current Consumption | 150 mA 3.3 V DC back plane, (typical)250 mA 3.3 V DC back plane, (maximum) |
| Dielectric Strength | 1400 V DC 60 s |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protection Type | overvoltage protection DC |
| Refresh Time | 1 ms |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 48 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201 |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 39.0258 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS |
| [Us] Rated Supply Voltage | 19.2...30 V DC, <30 mA24 V DC, <30 mA typical) |
| Package Weight(Lbs) | 167.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Transmission Rate | 500 kbauds, 200 kbauds, 1 Mbauds, 100 kbauds |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0222298182, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0452673939, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 25 kg CO2 eq., 25.4443826816 |
| Local Publishable Date | 2026-07-27 |
| Stocking Flag | N |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Data Format | 8...31 bits |
| Number Of Channels | 3 SSI channel |
| Product Or Component Type | encoder interface module |
| Range Of Product | Modicon X80 |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP2311046EN |
| Pep Verification Date | 2023-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS |
| Recyclability Potential In % | 3 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8543709860 |
Environment Attributes Main
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 0-60 °C |
| Environmental Disclosure | ENVPEP2311046EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 47.5343804997 |
| Circularity Profile | ENVEOLI2311046EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...13123.36 ft (0...4000 m) |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2311046EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | encoder interface module |
|---|
| Range Of Product | Modicon X80 |
|---|
ETIM
| ETIM 8 | EC001422 |
|---|
| ETIM 9 | EC001422 |
|---|
Output Attributes
| Number Of Outputs | 1 24 V DC reflex digital output for each SSI channel |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Compatibility | 24 V DC SSI absolute encoder 19.2-30 V)200 mA per channel |
|---|
| Number Of Inputs | 2 24 V DC capture digital inputs for the 3 SSI channels |
|---|
