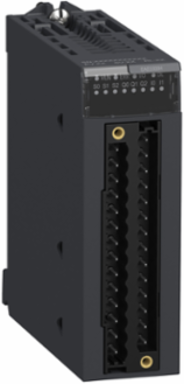

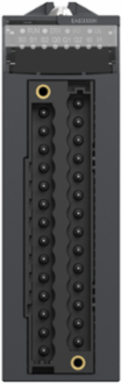

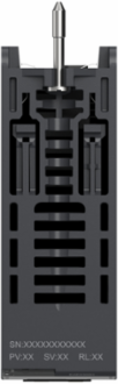

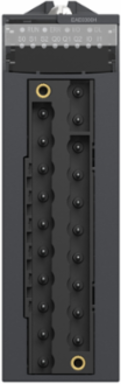

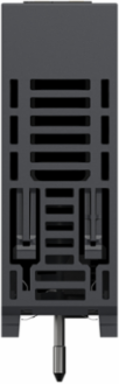

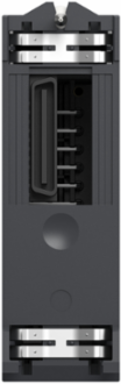

Schneider Electric BMXEAE0300H SSI Encoder Interface Module, 3 Channels, 1 Mbauds, IP20
- MPN: BMXEAE0300H
- PPN: SCH-BMXEAE0300H
CAD
$2591.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric BMXEAE0300H SSI Encoder Interface Module is engineered to facilitate seamless integration in automation systems, offering three channels to support multiple encoders simultaneously. With a communication speed of 1 Mbaud, this module ensures fast and efficient data transmission, making it ideal for real-time applications. Designed for an IP20 environment, it guarantees reliable performance in protected industrial settings. This interface module is pivotal for enhancing the accuracy and responsiveness of various control applications, providing a robust solution for modern automation challenges.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, United States |
|---|
Important Information Attributes
| Environmental Characteristic | gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2 |
|---|---|
| Transmission Rate | 1 Mbauds, 500 kbauds, 200 kbauds, 100 kbauds |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0237989818, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0484627394, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 25 kg CO2 eq., 25.4443826816 |
| Local Publishable Date | 2026-03-10 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Data Format | 8...31 bits |
| Number Of Channels | 3 SSI channel |
| Product Or Component Type | encoder interface module |
| Protection Type | overvoltage protection DC |
| Range Of Product | Modicon X80 |
| Returnability | No |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP2311046EN |
| Pep Verification Date | 2023-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS |
| Recyclability Potential In % | 3 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
| Function Available | offset, modulo, capture, reduction, compare |
|---|---|
| Certificate Agency | CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.3 kg CO2 eq., 0.3229452121 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 23 kg CO2 eq., 23.2540848485 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2311046EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2438 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Current Consumption | 150 mA 3.3 V DC back plane, (typical)250 mA 3.3 V DC back plane, (maximum) |
| Dielectric Strength | 1400 V DC 60 s |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Specific Application | for severe environments |
| Protective Treatment | conformal coating |
| Refresh Time | 1 ms |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 49 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201 |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 39.0258 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS |
| [Us] Rated Supply Voltage | 19.2...30 V DC, <30 mA24 V DC, <30 mA typical) |
| Package Weight(Lbs) | 182.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 49.0936744634 |
| Environmental Disclosure | ENVPEP2311046EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2311046EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...13123.36 ft (0...4000 m) |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2311046EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | encoder interface module |
|---|
| Range Of Product | Modicon X80 |
|---|
ETIM
| ETIM 8 | EC001422 |
|---|
| ETIM 9 | EC001422 |
|---|
Output Attributes
| Number Of Outputs | 1 24 V DC reflex digital output for each SSI channel |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Compatibility | 24 V DC SSI absolute encoder 19.2-30 V)200 mA per channel |
|---|
| Number Of Inputs | 2 24 V DC capture digital inputs for the 3 SSI channels |
|---|
