Harmony 9001K Illuminated Push-Button, 30mm, Amber, IP66, 24-28V
Schneider Electric

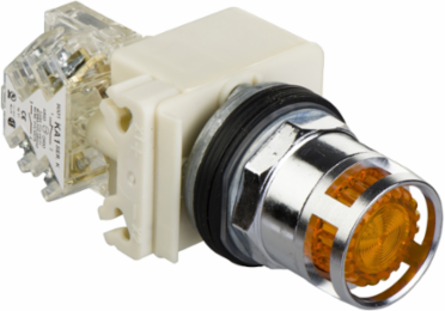

Schneider Electric 9001K3L35LYAH13 Harmony 9001K Illuminated Push-Button, 30mm, Amber, IP66, 24-28V

  • MPN: 9001K3L35LYAH13
  • UPC: 785901551003
  • PPN: SCH-9001K3L35LYAH13
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $269.00

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony 9001K, modular illuminated flush yellow push button is supplied with extended guard and integral LED. It has a chromium-plated metal bezel, is supplied with 24V AC/DC and has 1 changeover contact. This illuminated push button with extended guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France

    Physical Attributes

    Cad Overall Depth
    106 mm
    Cad Overall Width
    54 mm
    Light Source Color
    yellow
    Cad Overall Height42 mm
    Size30 mm

    Complementary Attributes

    Rated Breaking Capacity
    1.2 kA 600 V AC-15, 720 VA1.5 kA 480 V AC-15, 720 VA3 kA 240 V AC-15, 720 VA6 kA 120 V AC-15, 720 VA0.1 kA 600 V DC-130.27 kA 250 V DC-130.55 kA 125 V DC-13

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Operator Profile
    flush, amber flush, unmarked
    Terminals Description Iso N°1
    (13-14-11-12)OF, (13-14-11-12)OF
    Local Publishable Date
    2026-01-12
    Stocking Flag
    N
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2503027EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Bezel Material
    metal
    Compatibility Code
    9001K
    Contacts Material
    silver alloy contacts
    Device Short Name
    9001K
    Light Source
    LED
    Mounting Diameter
    30 mm
    Operator Additional Information
    metal guard
    Positive Opening
    without
    Product Or Component Type
    illuminated push-button
    Range Of Product
    Harmony 9001K
    Shape Of Screw Head
    cross slotted
    Shock Resistance
    50 gn IEC 60068-2-27
    Tightening Torque
    0.8-0.8 N.m IEC 60947-1
    Vibration Resistance
    7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Light Source Color
    yellow
    [Icm] Rated Short-circuit Making Capacity
    12 kA 600 V AC-15, 7200 VA15 kA 480 V AC-15, 7200 VA30 kA 240 V AC-15, 7200 VA60 kA 120 V AC-15, 7200 VA
    [Ui] Rated Insulation Voltage
    250 V 3)IEC 60947-1
    [Us] Rated Supply Voltage
    24...28 V24...28 V AC/DC
    Connections - Terminals
    screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8536509035
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Certificate AgencyNEMA, UL 508
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label7
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Bulb BaseBA 9s
    Contact Operationstandard
    Contacts Type And Composition1 C/O
    Light Block Supplydirect
    Mechanical Durability5000000 cycles
    Operating Positionany position
    Overvoltage Categoryclass II conforming to IEC 61140
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective TreatmentTC
    ReturnabilityYes
    Shape Of Signaling Unit Headoctagonal
    Sustainable PackagingYes
    Type Of Operatorspring return
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP2503027EN
    [Ith] Conventional Free Air Thermal Current10 A
    [Uimp] Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
    Cap/Operator Or Lens Colouramber
    Short-circuit Protection10 A cartridge fuse IEC 60947-5-1
    Package Weight(Lbs)226.796 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-70 °C, -25-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP65/IP66
    Take Back
    No
    China Rohs Regulation
    X
    Circularity Profile
    ENVEOLI2503027EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Without Single Use Plastic
    Yes
    Pep Code
    ENVPEP2503027EN
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of ProtectionNEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Environmental DisclosureENVPEP2503027EN
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    General Attributes

    Product Or Component Type
    illuminated push-button
    Range Of ProductHarmony 9001K

    ETIM

    ETIM 8
    EC001028
    ETIM 9EC001028

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    complete product

    Accessories
