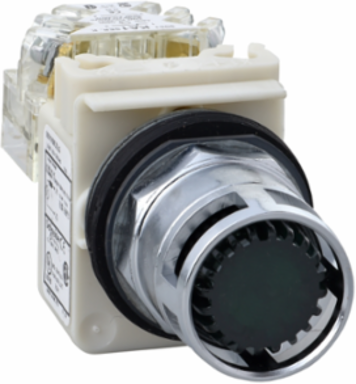

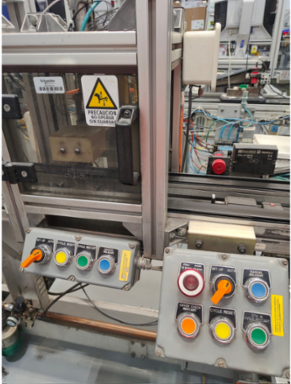

Schneider Electric 9001K3L38LGGH13 Harmony 9001K Metal Green Illuminated Push Button 30mm, IP66, 120V

  • MPN: 9001K3L38LGGH13
  • UPC: 785901725787
  • PPN: SCH-9001K3L38LGGH13
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $269.00

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony 9001K, modular illuminated flush green push button is supplied with a full guard. It has a chromium-plated metal bezel, is supplied with a 110V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Mexico, United States, ZZ

    Physical Attributes

    Cad Overall Depth
    106 mm
    Cad Overall Width
    54 mm
    Light Source Color
    green
    Cad Overall Height42 mm
    Size30 mm

    Complementary Attributes

    Rated Breaking Capacity
    1.2 kA 600 V AC-15, 720 VA1.5 kA 480 V AC-15, 720 VA3 kA 240 V AC-15, 720 VA6 kA 120 V AC-15, 720 VA, 0.27 kA 250 V DC-13

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Operator Profile
    flush, green flush, unmarked
    Terminals Description Iso N°1
    (13-14-11-12)OF, (13-14-11-12)OF
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.4 kg CO2 eq., 0.4384573915833495
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    1 kg CO2 eq., 1.089183508202605
    Local Data Status
    Publishable
    Return Indicator
    N
    Stock Policy
    2
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    7
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Bulb Base
    BA 9s
    Contact Operation
    standard
    Contacts Type And Composition
    1 C/O
    Light Block Supply
    direct
    Mechanical Durability
    5000000 cycles
    Operating Position
    any position
    Overvoltage Category
    class II conforming to IEC 61140
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Protective Treatment
    TC
    Returnability
    No
    Shape Of Signaling Unit Head
    octagonal
    Software Version
    v6.2.4
    Tightening Torque
    0.8-0.8 N.m IEC 60947-1
    Type Of Operator
    spring return
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep Code
    ENVPEP2503027EN
    Pep Verification Date
    2025-03-26
    Psr Version
    PSR-0005-ed3-2023 06 06
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    10
    Energy Model - Installation [A5]
    No energy used
    Energy Model - End Of Life [C1-c4]
    Global, European and French datasets are used.
    [Icm] Rated Short-circuit Making Capacity
    12 kA 600 V AC-15, 7200 VA15 kA 480 V AC-15, 7200 VA30 kA 240 V AC-15, 7200 VA60 kA 120 V AC-15, 7200 VA
    [Ith] Conventional Free Air Thermal Current
    10 A
    [Uimp] Rated Impulse Withstand Voltage
    2.5 kV IEC 60947-1
    Cap/Operator Or Lens Colour
    green
    Short-circuit Protection
    10 A cartridge fuse IEC 60947-5-1
    Package Weight(Lbs)
    199.581 g
    Warranty (In Months)
    18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Certificate AgencyUL 508, NEMA
    Carbon Footprint Of The Distribution Phase [A4]0.10796043976795827, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0014728878680791127, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]60 kg CO2 eq., 59.82673420507562
    Local Publishable Date2026-01-12
    Stocking FlagY
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2503027EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Bezel Materialmetal
    Compatibility Code9001K
    Contacts Materialsilver alloy contacts
    Device Short Name9001K
    Light SourceLED
    Mounting Diameter30 mm
    Operator Additional Informationmetal guard
    Positive Openingwithout
    Product Or Component Typeilluminated push-button
    Range Of ProductHarmony 9001K
    Shape Of Screw Headcross slotted
    Shock Resistance50 gn IEC 60068-2-27
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint61 kg CO2 eq.
    Vibration Resistance7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Light Source Colorgreen
    Database Version2024-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionThis subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; Mexico, MX
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
    Recyclability Potential In %49
    [Ie] Rated Operational Current0.55 A 125 V, DC-13, A600-Q600 NEMA
    [Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
    [Us] Rated Supply Voltage120 V120 V AC/DC
    Connections - Terminalsscrew clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536509035

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-70 °C, -25-70 °C
    Nema Degree Of Protection
    NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI2503027EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2025-03-26
    Psr Version
    PSR-0005-ed3-2023 06 06
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint61.46380843249761
    Environmental DisclosureENVPEP2503027EN
    Ip Degree Of ProtectionIP66 IEC 60529
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP2503027EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    illuminated push-button
    Range Of ProductHarmony 9001K

    ETIM

    ETIM 8
    EC001028
    ETIM 9EC001028

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    complete product
