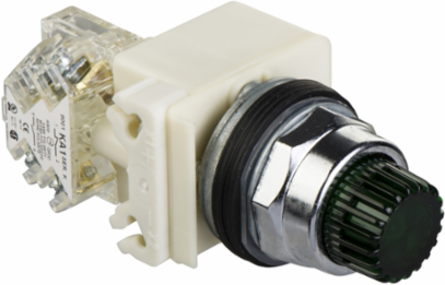

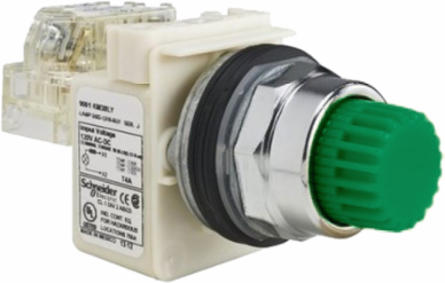

Schneider Electric 9001K2L38GH13 Harmony 9001K Illuminated Pushbutton, 30mm, Green, Spring Return, 120V
Schneider Electric 9001K2L38GH13 Harmony 9001K Illuminated Pushbutton, 30mm, Green, Spring Return, 120V
- MPN: 9001K2L38GH13
- UPC: 785901112440
- PPN: SCH-9001K2L38GH13
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$216.29/ EA
Description
This Harmony 9001K, modular illuminated projecting green push button is supplied with contact block. It has a chromium-plated metal bezel, is supplied with a 110V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Specifications
Environment
- Product Certifications
- UL 508 || NEMA
- Standards
- EN/IEC 60947-5-1 || JIS C 4520 || UL 508 || EN/IEC 60947-5-4 || JIS C 852 || CSA C22.2 No 14 || EN/IEC 60947-1
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529
Overvoltage Categoryclass II IEC 61140
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Complementary
- [Us] Rated Supply Voltage
- 120 V
- Terminals Description Iso N°1
- (13-14-11-12)OF
- Contacts Material
- silver alloy contacts
- Light Block Supply
- direct
- Mounting Diameter
- 30 mm
- Operator Profile
- projecting
- Rated Breaking Capacity
- 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Cap/Operator Or Lens Colour
- green
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- Cad Overall Height
- 42 mm
- [Icm] Rated Short-Circuit Making Capacity
- 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA
- Light Source
- incandescent
- Bezel Material
- metal
- Connections - Terminals
- screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Mechanical Durability
- 5000000 cycles
- Operating Position
- any position
- Cad Overall Width
- 54 mm
- Cad Overall Depth
- 103 mm
[Us] Rated Supply Voltage120 V AC/DC
Short-Circuit Protection10 A cartridge fuse IEC 60947-5-1
Light Sourceincandescent bulb
Positive Openingwithout
Light Block Supplyfull voltage or resistor
[Ith] Conventional Free Air Thermal Current10 A
Shape Of Signaling Unit Headoctagonal
Net Weight0.166 kg
Size30 mm
Device Presentationcomplete product
Contacts Type And Composition1 C/O
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
[Ie] Rated Operational Current0.55 A 125 V, DC-13, A600-Q600 NEMA
Contact Operationstandard
Type Of Operatorspring return
Tightening Torque0.8-0.8 N.m IEC 60947-1
Shape Of Screw Headcross slotted
Bulb BaseBA 9s
Specifications
- Operator Additional Information
- without guard
- Type Of Operator
- spring return
- Operator Profile
- green projecting, unmarked
Range Of ProductHarmony 9001K
Product Or Component Typeilluminated push-button
Device Short Name9001K
