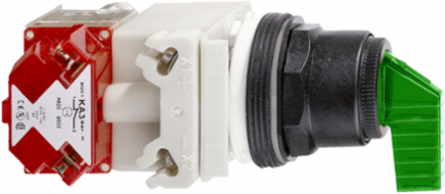

Schneider Electric 9001SK11J38FGH1Y238 Illuminated Selector Switch 30 mm Green, 120V, 2 Positions, IP66
- MPN: 9001SK11J38FGH1Y238
- UPC: 785901632917
- PPN: SCH-9001SK11J38FGH1Y238
- UNSPSC: 39122216
CAD
$269.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The illuminated selector switch from Schneider Electric features a vibrant green design, making it an ideal choice for enhancing visibility and functionality in automation and control applications. Designed with a 30 mm diameter, this switch operates at 120V and provides two distinct positions for versatile control. Additionally, it meets the IP66 standard, ensuring robust protection against dust and water, which makes it suitable for demanding environments. Perfectly blending durability and practicality, this selector switch offers reliable operation and can significantly improve interface interaction in various industrial settings.
Documentation & Downloads
Specifications
Key Specifications
| Weight | 0.249 kg |
|---|---|
| Product Or Component Type | illuminated selector switch |
| Range Of Product | Harmony 9001SK |
|---|---|
| Device Short Name | 9001SK |
Complementary
| [Us] Rated Supply Voltage | 120 V |
|---|---|
| Connections - Terminals | screw terminals for lug |
| Cam Profile | 5 |
| Light Source | incandescent bulb |
| Light Block Supply | full voltage or resistor |
| Type Of Operator | stay put |
| Net Weight | 0.249 kg |
| Bulb Base | BA 9s |
| Contacts Type And Composition | 1 C/O |
|---|---|
| Bezel Material | plastic |
| Operator Position Information | 2 positions |
| Mounting Diameter | 30 mm |
| Operator Profile | long handle |
| Cap/Operator Or Lens Colour | green |
| Size | 30 mm |
| Device Presentation | complete product |
Environment
| Product Certifications | UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03 || CE |
|---|---|
| Ambient Air Temperature For Storage | -40-70 °C |
| Electrical Shock Protection Class | class II IEC 61140 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Protective Treatment | TC |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| China Rohs Regulation | X |
|---|---|
| Rohs Exemption Information | Yes |
| Environmental Disclosure | ENVPEP120820EN |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Circularity Profile | N/A |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
