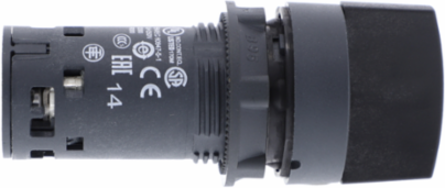

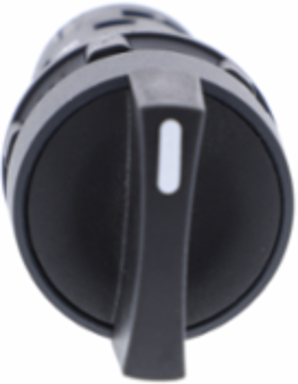

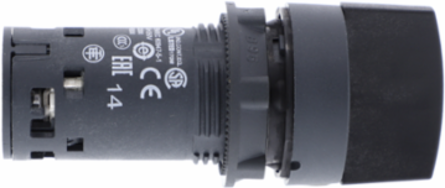

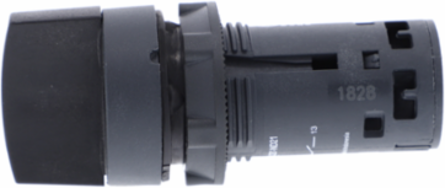

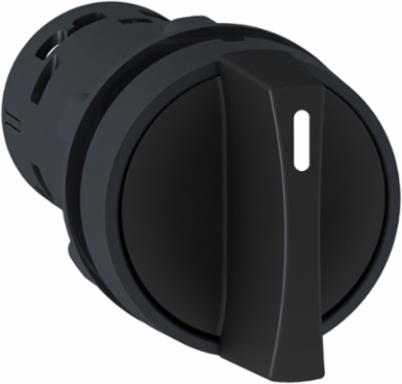

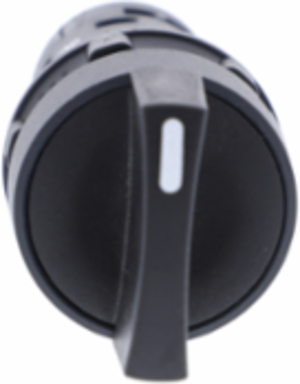

Schneider Electric XB7ND21 Harmony XB7 Selector Switch, 22mm, 2 Positions, IP65, 1 NO

  • MPN: XB7ND21
  • PPN: SCH-XB7ND21
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $42.37

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony XB7, monolithic black selector switch has 2 positions, operates with a stay-put mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to give your machine multiple different inputs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

    Features

    • The Schneider Electric Harmony XB7ND21 is explicitly engineered to fit a standard 22mm diameter industry-standard cut-out, ensuring backward compatibility with your existing control setups. Its monolithic design houses both the operator and the contact block in a single, compact body, making it a drop-in replacement that saves valuable panel-depth space over traditional modular assemblies.
    • This 2-position selector switch features a 1 NO (Normally Open) contact configuration utilizing reliable screw clamp terminal connections for secure, vibration-resistant wiring.
    • Engineered with a maintained/stay-put operation type across a 90-degree center-to-right throw, this switch securely locks into your selected state. Unlike spring-return models that snap back automatically, this mechanical design guarantees the circuit remains open or closed until an operator manually turns it back, preventing unintended machine restarts or process interruptions.
    • Designed for long-term industrial deployment, this monolithic selector switch boasts a mechanical life of up to 300,000 cycles and an electrical life of 1,000,000 cycles. It functions reliably across a wide operating temperature spectrum from -25 C to 70 C (-13 F to 158 F), drastically minimizing maintenance downtime and replacement costs in unconditioned industrial environments.
    • Rest easy knowing your panel installations comply with strict North American and global safety benchmarks; this switch carries official UL 508 and CSA C22.2 certifications, and satisfies EN/IEC 60947-5-1 standards. Its clear, non-illuminated black standard handle ensures a recognizable, professional aesthetic that passes rigorous electrical inspections with ease.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Indonesia

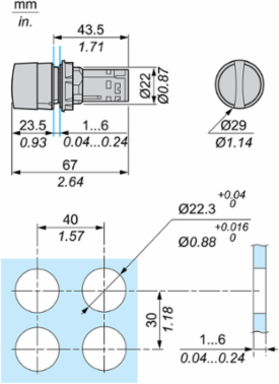

    Physical Attributes

    Cad Overall Depth
    68.5 mm
    Cad Overall Width
    29 mm
    Cad Overall Height29 mm

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Electrical Durability
    1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
    Shape Of Screw Head
    cross JIS No 1, cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    Terminals Description Iso N°1
    (13-14)NO, (13-14)NO
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.0802897968, 0.1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.3 kg CO2 eq., 0.2624752549
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    1
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    No
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Contact Operation
    slow-break
    Device Short Name
    XB7
    Electrical Shock Protection Class
    class II conforming to IEC 61140
    Mechanical Durability
    300000 cycles
    Operator Position Information
    2 positions 90°
    Positive Opening
    without
    Product Or Component Type
    selector switch
    Range Of Product
    Harmony XB7
    Sale Per Indivisible Quantity
    10
    Shock Resistance
    50 gn 11 ms) half sine wave acceleration IEC 60068-2-2730 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    Sustainable Packaging
    No
    Total Lifecycle Carbon Footprint
    0.4 kg CO2 eq.
    Vibration Resistance
    5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Pep Code
    ENVPEP2312032EN
    Pep Verification Date
    2023-12-07
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    10
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    [Ie] Rated Operational Current
    0.1 A 250 V, DC-13, R300 IEC 60947-5-10.22 A 125 V, DC-13, R300 IEC 60947-5-10.3 A 240 V, AC-14, D300 IEC 60947-5-10.6 A 120 V, AC-14, D300 IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage
    4 kV IEC 60947-1

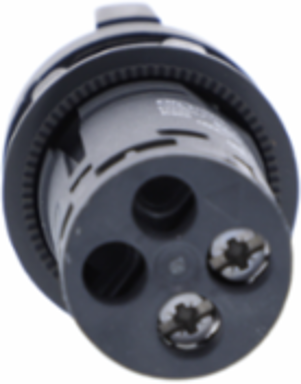

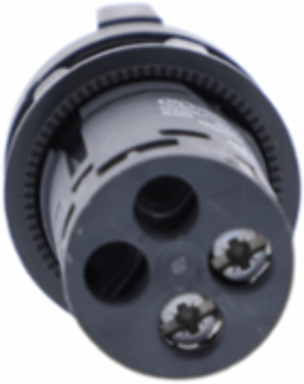

    Connections - Terminals
    screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
    1.0533
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Fixing Center>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm
    Certificate AgencyCSA C22.2 No 14, UL 508, IEC 60947-5-1, JIS C8201-5-1, IEC 60947-1, JIS C8201-1
    Carbon Footprint Of The Distribution Phase [A4]0.0036614423, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0001048984
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0 kg CO2 eq., 0.042906
    Local Publishable Date2026-03-26
    Stocking FlagY
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2312032EN
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Compatibility CodeXB7
    Contacts Type And Composition1 NO
    Electrical Reliabilityλ < 10exp(-6) 17 V 5 mA IEC 60947-5-4
    Fixing Modefixing nut 2-2.4 N.m
    Mounting Diameter22 mm
    Operator Profileblack standard handle
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective TreatmentTH
    ReturnabilityYes
    Shape Of Signaling Unit Headround
    Software Versionv5.9.4
    Tightening Torque0.8-1.2 N.m IEC 60947-1
    Type Of Operatorstay put
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionXB7, monolithic black selector switch has 3 positions, operates with a spring-return-to-center mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to give your machine multiple different inputs.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; ID
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Recyclability Potential In %27
    [Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
    Cap/Operator Or Lens Colourblack
    Short-circuit Protection4 A cartridge fuse gG IEC 60947-5-1
    Package Weight(Lbs)28.0 g
    Warranty (In Months)18
    Customs Code8536509020

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-70 °C, -25-70 °C
    Nema Degree Of Protection
    NEMA 12 UL 50 E, NEMA 3 UL 50 E, UL type 3/12
    Reach Free Shvc
    Yes
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI2312032EN
    Eu Rohs Directive
    Compliant
    Packaging Made With Recycled Cardboard
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2312032EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint0.3894373924
    Environmental DisclosureENVPEP2312032EN
    Ip Degree Of ProtectionIP20 IEC 60529 rear face)IP65 IEC 60529 front face)
    Packaging Without Single Use PlasticNo
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2023-12-07
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    selector switch
    Range Of ProductHarmony XB7

    ETIM

    ETIM 8
    EC001029
    ETIM 9EC001029
