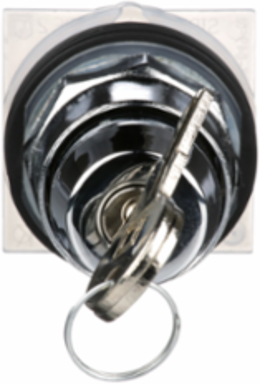

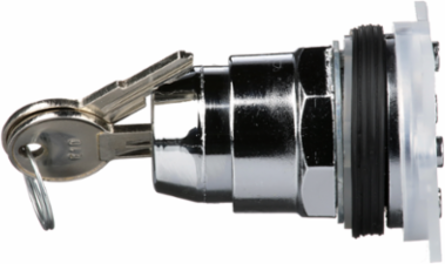

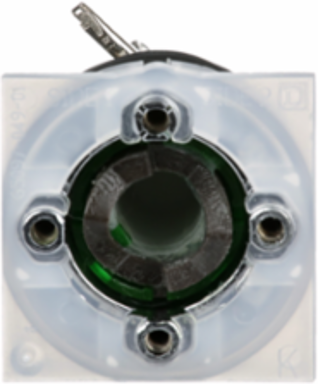

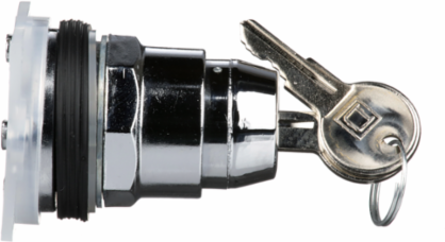

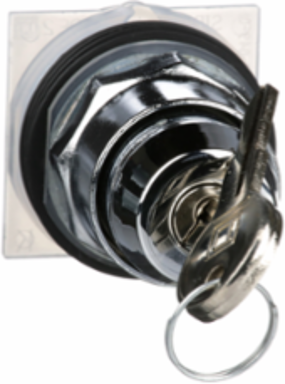

Schneider Electric 9001KS11K3 Key Selector Switch Head, 30 mm, Metal, E10 Key, 2 Positions, IP66
- MPN: 9001KS11K3
- UPC: 785901913634
- PPN: SCH-9001KS11K3
CAD
$178.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This key selector switch is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is supplied with E10 key operated knob. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is easily installed into a standard 30mm diameter panel cut-outs. It features 2 positions maintained operator and is supplied without contacts. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Features
- Designed for a standard 30mm oil-tight mounting hole, this Schneider Electric Harmony 9001K selector switch features a chrome-plated metal bezel engineered for extreme durability. It is specifically built to resist corrosion, oil, and moisture, making it the ideal choice for heavy-duty manufacturing floors and outdoor control stations where plastic alternatives would fail.
- his 2-position selector switch requires a physical key (E10 code) to transition between "On" and "Off" or "Auto" and "Manual" states. By restricting operational control to authorized personnel only, you effectively prevent accidental setting changes and tampering, enhancing overall facility safety and protecting sensitive machinery from improper use
- Featuring a maintained (stay-put) operator, this switch remains in the selected position until it is manually keyed back to the original state. This eliminates the need for constant operator presence or additional holding relays, providing a stable and reliable signal for continuous processes like motor starters, lighting circuits, or system power-ups.
- Carrying rigorous NEMA 4, 12, and 13 ratings, as well as an IP66 international protection grade, this unit is fully sealed against high-pressure water jets and heavy dust infiltration. Whether installed in a food processing plant requiring frequent washdowns or a dusty woodworking facility, the internal contacts remain shielded, ensuring long-term electrical conductivity and reducing maintenance-related downtime.
Documentation & Downloads
Specifications
Additional
- Mechanical Durability
- 500000 cycles
- Type Of Operator
- stay put (maintained)
- Mounting Diameter
- 30 mm (1.18 in)
- Key Number
- E10
- Ambient Air Temperature For Operation
- -25 to 70 °C
- Bezel Material
- Metal, chromium-plated bezel
- Standards
- JIS C 4520, IEC 60947-5-1, JIS C 852, IEC 60947-5-4, UL 508, IEC 60947-1, CSA C22.2 No 14
- Ip Degree Of Protection
- IP66 IEC 60529
- Net Weight
- 0.207 kg
- Rohs Exemption Information
- Yes
- China Rohs Regulation
- X
- Compliance
- UL Listed, CSA Certified, CE Declaration of Conformity, RoHS Compliant
- Operator Profile
- key switch
- Contacts Type And Composition
- without contact block
- Range Of Product
- Harmony 9001K
- Protective Treatment
- TC
- Environmental Disclosure
- ENVPEP121006EN
- Circularity Profile
- N/A
- Shock Resistance
- 50 gn IEC 60068-2-27
- Country of Origin
- Mexico
Operator Position Information2 positions
Overvoltage CategoryClass II IEC 61140
Size30 mm
Shape Of Signaling Unit HeadOctagonal
Ambient Air Temperature For Storage-40 to 70 °C
Product CertificationsUL 508, NEMA
Nema Degree Of ProtectionNEMA 1, 2, 3, 3R, 4, 12, 13
Key Withdrawal Positionleft and right
Reach RegulationContains Substances of Very High Concern above threshold
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product Compatibility9001KA1 side 1 or 2
Type Of KeylockE10
Device Short Name9001K
Warranty18 months
Device Presentationbasic element
Sustainable Offer StatusGreen Premium product
Cam Profile5
Vibration Resistance7 gn 2-500 Hz IEC 60068-2-6
