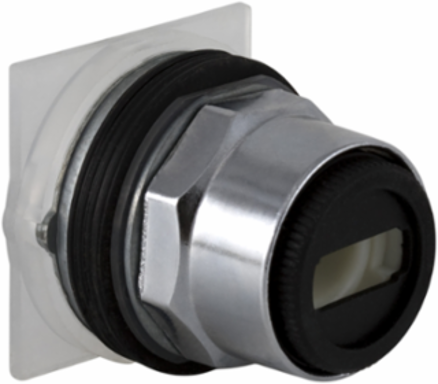

Square D 9001K53J1 Illuminated Selector Switch Head 30mm, 3 Positions, Metal, 110-120V
- MPN: 9001K53J1
- UPC: 785901028666
- PPN: SCH-9001K53J1
CAD
$240.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
With a robust design and intuitive operation, this illuminated selector switch head from Schneider Electric is engineered for efficiency in automation and control applications. Featuring a durable metal construction, this 30mm switch offers three distinct positions to enhance user interface functionality. Operating at 110-120V, it provides clear visibility and reliable performance, making it an ideal choice for panel builders and industrial environments where precision and durability are paramount.
Documentation & Downloads
Specifications
Additional
- Rated Supply Voltage
- 110-120 V AC 50/60 Hz
- Operator Type
- both sides to centre spring return
- Mechanical Durability
- 500000 cycles
- Return
- both sides to centre
- Mounting Diameter
- 30 mm (1.18 in)
- Shape of Signaling Unit Head
- round
- Material
- metal
- Bulb Base
- BA 9s
- Electrical Shock Protection Class
- class II IEC 61140
- NEMA Degree of Protection
- NEMA 1, 2, 3, 3R, 4, 6, 12, 13
- Product Certifications
- NEMA, UL 508
- Shock Resistance
- 50 gn IEC 60068-2-27
- Product Type
- illuminated selector switch head
- Operator Profile
- without handle
- Country of Origin
- Mexico
- RoHS Compliance
- Pro-active compliance (out of EU RoHS legal scope)
Supply Frequency50-60 Hz
Operator Positions3 positions
Light Sourceincandescent bulb
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Size30 mm
Cam Profile3
Bezel Materialmetal
Protective TreatmentTC
IP Degree of ProtectionIP66 IEC 60529
StandardsEN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-1, CSA C22.2 No 14, JIS C 4520, JIS C 852, UL 508
Vibration Resistance7 gn 2-500 Hz IEC 60068-2-6
Ambient Air Temperature for Storage-40 to 70 °C (-40 to 158 °F)
Device Presentationbasic element
Range Of ProductHarmony 9001K
Mercury Freeyes
