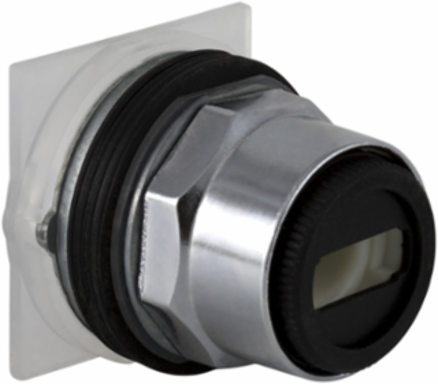

Square D 9001K46J1 Harmony Illuminated Selector Switch Head, 30mm, 3 Positions, Metal, 110-120V
- MPN: 9001K46J1
- UPC: 785901028628
- PPN: SCH-9001K46J1
CAD
$202.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Harmony Illuminated Selector Switch Head from Schneider Electric offers a robust solution for enhancing control in automation and industrial applications. Designed with a 30mm size and equipped with three selectable positions, this metal switch head facilitates easy operation while ensuring high visibility through its illumination feature. Operating at 110-120V, it is built for reliable functionality, making it an essential component for panel builders and engineers seeking precision and convenience in their control systems.
Documentation & Downloads
Specifications
Additional
- Voltage
- 110...120 V AC 50/60 Hz
- Shock Resistance
- 50 gn IEC 60068-2-27
- Operator Positions
- 3 positions
- Size
- 30 mm
- Bezel Material
- metal
- Light Block Supply
- via integral transformer
- Shape of Signaling Unit Head
- round
- Electrical Shock Protection Class
- class II IEC 61140
- NEMA Degree of Protection
- NEMA 1, 2, 3, 3R, 4, 6, 12, 13
- Product Certifications
- UL 508, NEMA
- Ambient Air Temperature for Operation
- -25 to 70 °C (-13 to 158 °F)
- Mercury Free
- Yes
- EU RoHS Directive
- Pro-active compliance (out of EU RoHS legal scope)
Mechanical Durability500000 cycles
Vibration Resistance7 gn 2-500 Hz IEC 60068-2-6
Type of Operatormaintained, stay put
Mounting Diameter30 mm (1.18 in)
Light Sourceincandescent bulb
Bulb BaseBA 9s
Protective TreatmentTC
IP Degree of ProtectionIP66 IEC 60529
StandardsJIS C 852, EN/IEC 60947-5-1, EN/IEC 60947-1, CSA C22.2 No 14, JIS C 4520, UL 508, EN/IEC 60947-5-4
Net Weight0.245 kg
Ambient Air Temperature for Storage-40 to 70 °C (-40 to 158 °F)
RoHS Exemption InformationYes
Country of OriginMX
