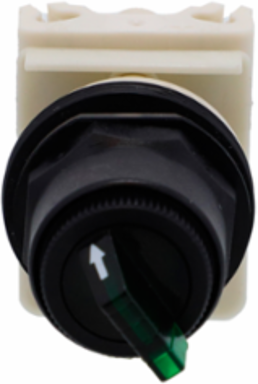

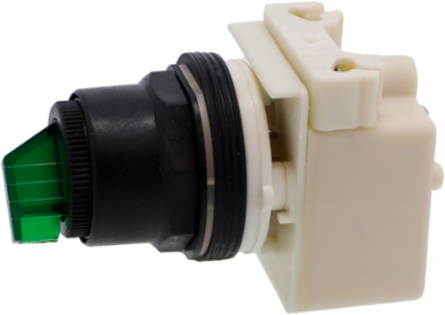

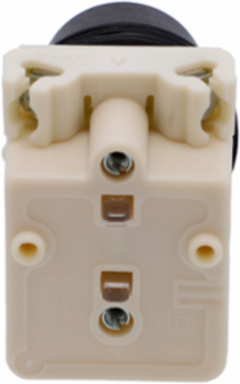

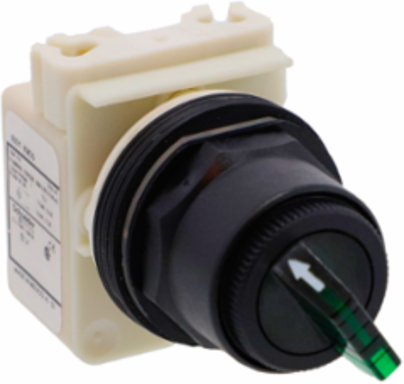

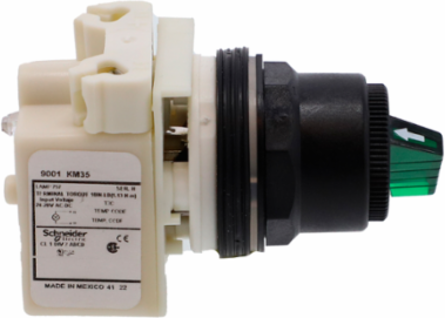

Square D 9001SK11J35G Illuminated Selector Switch Head, 30 mm, Green, 24-28V, 2 Positions
- MPN: 9001SK11J35G
- UPC: 785901040248
- PPN: SCH-9001SK11J35G
CAD
$176.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This illuminated selector switch head from Schneider Electric is designed specifically for automation and control applications, offering reliable functionality with its 30 mm size and vibrant green illumination. Operating at 24-28V, it provides clear visibility and easy identification for operators, ensuring swift action in both industrial and commercial settings. With two selectable positions, this switch head enables efficient control, making it an essential component for a variety of pilot device configurations. Its durable construct and ergonomic design reflect Schneider Electric's commitment to quality and ease of use in the realm of automation solutions.
Documentation & Downloads
Specifications
Additional
- Voltage
- 24...28 V AC/DC
- Shock Resistance
- 50 gn IEC 60068-2-27
- Size
- 30 mm
- Operator Positions
- 2 positions
- Operator Profile
- green standard handle
- Light Source
- incandescent bulb
- Net Weight
- 0.059 kg
- Product Certifications
- NEMA, UL 508
- IP Degree of Protection
- IP66 IEC 60529
- Electrical Shock Protection Class
- Class II IEC 61140
- Ambient Air Temperature for Storage
- -40 to 70 °C (-40 to 158 °F)
- Mercury Free
- Yes
- Reach Free Of SVHC
- Yes
- China RoHS Regulation
- X
- Environmental Disclosure
- ENVPEP120820EN
- Device Short Name
- 9001SK
- Contacts Type And Composition
- without contact block
- Range Of Product
- Harmony 9001SK
- Circularity Profile
- N/A
Mechanical Durability500000 cycles
Vibration Resistance7 gn (2-500 Hz) IEC 60068-2-6
Mounting Diameter30 mm
Type of Operatormaintained, stay put
Bezel Materialplastic
Bulb BaseBA 9s
Shape Of Signaling Unit Headround
StandardsUL 508, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C 852, JIS C 4520, CSA C22.2 No 14
NEMA Degree of ProtectionNEMA 1, 2, 3, 3R, 4, 4X, 6, 12, 13
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Protective TreatmentTC
Reach RegulationFree of SVHC above threshold
Eu RoHS DirectivePro-active compliance (Product out of EU RoHS legal scope)
Toxic Heavy Metal FreeYes
Compatibility Code9001SK
Product Or Component Typehead for illuminated selector switch
Cam Profile5
Light Block Supplydirect, full voltage
WeeeEU disposal compliant
