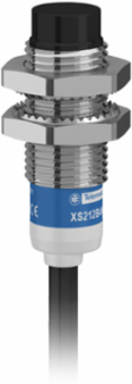

Telemecanique Sensors XS212B4PAL5 Inductive proximity sensors XS, inductive sensor XS2 M12, L37mm, brass, Sn8mm, 12...24 VDC, cable 5 m
- MPN: XS212B4PAL5
- PPN: TES-XS212B4PAL5
- UNSPSC: 41111926
CAD
$154.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Inductive proximity sensors XS, inductive sensor XS2 M12, L37mm, brass, Sn8mm, 12...24 VDC, cable 5 m
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- cable
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Cable Length
- 5 m
- Material
- metal
- Wiring Technique
- 3-wire
- Series Name
- general purpose
- [Sn] Nominal Sensing Distance
- 8 mm
- Sensor Type
- inductive proximity sensor
- Sensor Design
- cylindrical M12
- Device Application
- mobile equipment
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Discrete Output Function1 NO
Range Of ProductTelemecanique Inductive proximity sensors XS
Sensor NameXS2
Size37 mm
Ip Degree Of ProtectionIP65 IEC 60529 || IP67 DIN 40050 || IP69K
Body Typefixed
Detector Flush Mounting Acceptancenon flush mountable
Switching Capacity In Ma<= 200 mA overload and short-circuit protection
Output Circuit TypeDC
Complementary
- Current Consumption
- <= 10 mA no-load
- Status Led
- output state 1 LED yellow)
- Maximum Voltage Drop
- <2 V closed)
- Marking
- CE
- Net Weight
- 0.16 kg
- Thread Type
- M12 x 1
- Differential Travel
- 1...15% of Sr
- Maximum Delay First Up
- 15 ms
- Wire Insulation Material
- PVC
- Enclosure Material
- nickel plated brass
- Front Material
- PPS
Maximum Delay Response0.2 ms
Operating Zone0-6.4 mm
Threaded Length20 mm
Length37 mm
Switching Frequency<= 2000 Hz
Sensing Range> 4...8 mm
Maximum Delay Recovery0.2 ms
Supply Voltage Limits10-36 V DC
Detection Facefrontal
Cable Composition3 x 0.34 mm²
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
Environment
- Product Certifications
- UL || CSA || E2
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
