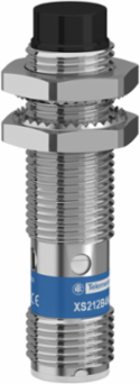

Telemecanique Sensors XS212B4PAM12 Inductive proximity sensors XS, inductive sensor XS2 M12, L51mm, brass, Sn8mm, 12...24 VDC, M12
- MPN: XS212B4PAM12
- PPN: TES-XS212B4PAM12
- UNSPSC: 41111926
CAD
$141.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, non flush mountable sensor. Diameter 12mm, threaded M12 x 1. It features a brass case and a M12 connector. It has a sensing distance of 8mm. Three-wire, DC supply, 12V to 24V, NO function, PNP discrete output.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- male connector M12, 4 pins
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Sensor Name
- XS2
- Size
- 51 mm
- Ip Degree Of Protection
- IP65 IEC 60529 || IP67 DIN 40050 || IP69K
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Switching Capacity In Ma
- <= 200 mA overload and short-circuit protection
- Output Circuit Type
- DC
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Discrete Output Function1 NO
Range Of ProductTelemecanique Inductive proximity sensors XS
Materialmetal
Wiring Technique3-wire
Series Namegeneral purpose
[Sn] Nominal Sensing Distance8 mm
Detector Flush Mounting Acceptancenon flush mountable
Sensor Designcylindrical M12
Device Applicationmobile equipment
Complementary
- Current Consumption
- <= 10 mA no-load
- Status Led
- output state 1 LED yellow)
- Maximum Voltage Drop
- <2 V closed)
- Marking
- CE
- Net Weight
- 0.032 kg
- Thread Type
- M12 x 1
- Differential Travel
- 1...15% of Sr
- Maximum Delay First Up
- 15 ms
- Detection Face
- frontal
- Front Material
- PPS
Maximum Delay Response0.2 ms
Operating Zone0-6.4 mm
Threaded Length26 mm
Length51 mm
Switching Frequency<= 2000 Hz
Sensing Range> 4...8 mm
Maximum Delay Recovery0.2 ms
Supply Voltage Limits10-36 V DC
Enclosure Materialnickel plated brass
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
Environment
- Product Certifications
- CSA || E2 || UL
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
