Balluff

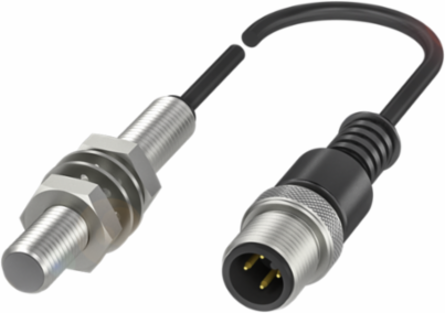

Balluff BAW M08EI-UAD15B-BP00,5-GS04 Inductive distance sensors - BAW000P

Inductive distance sensors - BAW000P
  • MPN: BAW M08EI-UAD15B-BP00,5-GS04
  • PPN: BAL-BAW000P

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$224.66/ EA

Specifications

Specifications

Country of Origin
Hungary
Style
M8x1
Range
0.5...1.5 mm
Output characteristic
falling on approach
Repeat accuracy
±8 µm
Housing material
Stainless steel
Connection
Cable with connector, M12x1-Male, 3-pin, 0.50 m, PUR
Ambient temperature
-10...70 °C
Approval/Conformity
CE; UKCA; cULus; WEEE
DimensionØ 8 x 51.5 mm
Installationfor flush mounting
Analog outputAnalog, voltage 0...10 V
Limit frequency –3 dB1000 Hz
Non-linearity max.±30 µm
Material sensing surfacePBT
Operating voltage Ub15...30 VDC
IP rating per IEC 60529IP67
