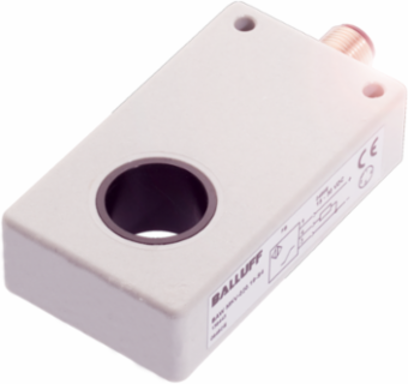

Balluff BAW MKV-020.19-S4 Inductive Distance Sensors, IP67, 0-60 mm Range, PBT Housing, -10 to 70 °C
Balluff BAW MKV-020.19-S4 Inductive Distance Sensors, IP67, 0-60 mm Range, PBT Housing, -10 to 70 °C
- MPN: BAW MKV-020.19-S4
- PPN: BAL-BAW003L
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$306.97/ EA
Description
The Balluff inductive distance sensor is engineered for precision and reliability, offering a sensing range of 0 to 60 mm with an impressive accuracy of ±200 µm. Designed with a robust PBT housing and rated IP67, this sensor is built to withstand harsh environments, making it suitable for various industrial applications. With an operating voltage range of 15 to 30 VDC and a non-linearity maximum of ±1500 µm, it ensures consistent performance even under challenging conditions. Its analog output delivers a voltage range of 10 to 0 V, while the compact dimensions of 80 x 45 x 20 mm make it easy to integrate into existing systems.
Specifications
- Sensing Range
- 0...60 mm
- Non-linearity Maximum
- ±1500 µm
- Output Voltage Range
- 10...0 V (falling on approach)
- Limit Frequency –3 dB
- 1000 Hz
- Connection
- Connector, M12x1-Male, 3-pin
- Housing Material
- PBT
- IP Rating
- IP67
- Country of Origin
- Germany
Accuracy±200 µm
Operating Voltage15...30 VDC
Ambient Temperature-10...70 °C
Dimensions80 x 45 x 20 mm
Installationnon-flush
Styleblock style
Approval/ConformityCE; WEEE
