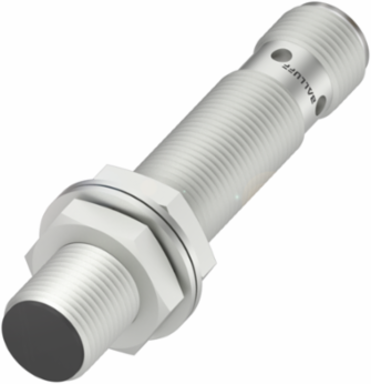

Balluff BES M12ML-PSC30A-S04G-W01 Inductive factor 1 sensors - BES02K4
- MPN: BES M12ML-PSC30A-S04G-W01
- PPN: BAL-BES02K4
CAD
$261.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Inductive factor 1 sensors - BES02K4
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Hungary
- Style
- M12x1
- Range
- 3 mm
- Switching frequency
- 2000 Hz
- Material sensing surface
- ceramic coated
- Operating voltage Ub
- 10...30 VDC
- Magnetic field immune
- magnetic field immune (AC/DC)
- Approval/Conformity
- CE; UKCA; cULus; WEEE
DimensionØ 12 x 65 mm
Installationfor flush mounting
Switching outputPNP Normally open (NO)
Housing materialBrass, PTFE coated
ConnectionConnector, M12x1-Male, 4-pin
Ambient temperature-25...70 °C
IP rating per IEC 60529IP67
Additional featuresFactor 1; Weld immune
