Balluff

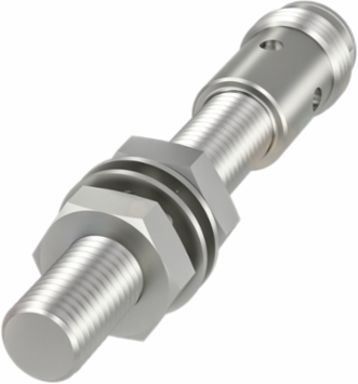

Balluff BES M08EH1-PSC20B-S04G-S Inductive full-metal sensors - BES02N5

Inductive full-metal sensors - BES02N5
  • MPN: BES M08EH1-PSC20B-S04G-S
  • PPN: BAL-BES02N5

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$198.39/ EA

Specifications

Specifications

Country of Origin
Hungary
Style
M8x1
Range
2 mm
Switching frequency
750 Hz
Material sensing surface
Stainless steel
Operating voltage Ub
10...30 VDC
Pressure rating max.
80 bar
Approval/Conformity
CE; UKCA; cULus; WEEE
DimensionØ 8 x 65 mm
Installationfor flush mounting
Switching outputPNP Normally open (NO)
Housing materialStainless steel
ConnectionConnector, M12x1-Male, 3-pin
Ambient temperature-25...70 °C
IP rating per IEC 60529IP67
