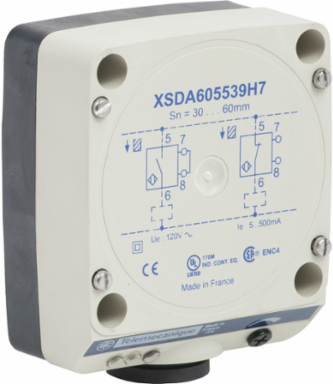

Telemecanique Sensors XSDA605539H7 Inductive proximity sensors XS, inductive sensor XSD 80x80x40, plastic, Sn40mm, 24...240 VAC, terminals
Telemecanique Sensors XSDA605539H7 Inductive proximity sensors XS, inductive sensor XSD 80x80x40, plastic, Sn40mm, 24...240 VAC, terminals
- MPN: XSDA605539H7
- PPN: TES-XSDA605539H7
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$531.20/ EA
Description
This XSD is a part of the OsiSense XS product range of inductive proximity sensors. Inductive proximity sensors enable the detection, without physical contact, of metal objects. Its range of applications is very extensive and includes monitoring the position of machine parts (cams, end stops, etc.) or counting the presence of metal objects. These sensors have high operating rates, fast response, and excellent resistance to industrial environments (robust products, fully encapsulated in resin). The range of this sensor is 1.18in (30mm) to 2.36in (60mm). The sensor accepts 43VAC to 132VAC power and provides a normally open or normally closed discrete output. The sensor is a non flush mountable plastic sensor with a five position turret head and screw clamp terminals. It is compliant with UL, CSA, and CE standards and IP67 rated. It is suitable for railway, mobile equipment, material handling/conveying/logistics, material working/machine tools, packaging, robotics, food and beverage industries. This product is certified by CCC. Inductive sensors come in flush and non-flush versions, M8, M12, M18, M30 short and long bodies cylindrical forms, standard cubic, rectangular and flat forms. The inductive proximity sensors for non contact sensing of metal objects up to 60mm. It is designed for use in industrial applications relating to presence detection.
Specifications
Environment
- Product Certifications
- CCC
Ambient Air Temperature For Operation-25-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP071001EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Complementary
- Height
- 100 mm
- Material
- plastic
- Detector Flush Mounting Acceptance
- non flush mountable
- Width
- 80 mm
- Depth
- 40 mm
Cable Entry1 entry tapped for 1/2" NPT cable gland
Switching Frequency<= 10 Hz
Detection Face5 positions turret head
Front Materialplastic
Output Circuit TypeAC
Specifications
- Electrical Connection
- screw-clamp terminals
- Discrete Output Function
- 1 NO or 1 NC programmable
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Size
- 40 mm
- Ip Degree Of Protection
- IP67
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Enclosure Material
- Plastic
[Us] Rated Supply Voltage132 V AC
Type Of Output Signaldiscrete
Sensor NameXSD
Wiring Technique2-wire
Series Namegeneral purpose
[Sn] Nominal Sensing Distance60 mm
Sensor Designform 80 x 80 x 40
