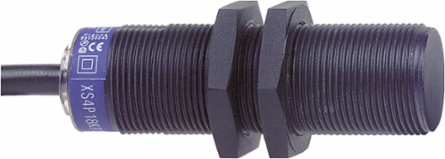

Telemecanique Sensors XS4P18PA370L2 Inductive proximity sensors XS, inductive sensor XS4 M18, L60mm, PPS, Sn8mm, 12...48 VDC, cable 10 m
Telemecanique Sensors XS4P18PA370L2 Inductive proximity sensors XS, inductive sensor XS4 M18, L60mm, PPS, Sn8mm, 12...48 VDC, cable 10 m
- MPN: XS4P18PA370L2
- PPN: TES-XS4P18PA370L2
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$182.93/ EA
Description
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, non flush mountable sensor. Diameter 18mm, threaded M18 x 1. It features a plastic case and a 10m long PvR cable. It has a sensing distance of 8mm. Three-wire, DC supply, 12V to 48V, NO function, PNP discrete output. This sensor is ECOLAB certified.
Specifications
Environment
- Product Certifications
- CSA || CCC || UL
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1110045
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Current Consumption
- 0...10 mA no-load
- Maximum Delay Response
- 0.15 ms
- Operating Zone
- 0-6.4 mm
- Threaded Length
- 52 mm
- Length
- 62 mm
- Switching Frequency
- <= 2000 Hz
- Differential Travel
- 1...15% of Sr
- Maximum Delay First Up
- 10 ms
- Wire Insulation Material
- PvR
- Enclosure Material
- PPS
- Front Material
- PPS
Height18 mm
Status Ledoutput state 1 LED yellow)
Maximum Voltage Drop<2 V closed)
MarkingCE
Net Weight0.42 kg
Thread TypeM18 x 1
Maximum Delay Recovery0.35 ms
Supply Voltage Limits10-58 V DC
Detection Facefrontal
Cable Composition3 x 0.34 mm²
Specifications
- Electrical Connection
- cable
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Cable Length
- 10 m
- Material
- plastic
- Wiring Technique
- 3-wire
- Series Name
- general purpose
- [Sn] Nominal Sensing Distance
- 8 mm
- Detector Flush Mounting Acceptance
- non flush mountable
- Sensor Design
- cylindrical M18
[Us] Rated Supply Voltage12...48 V DC reverse polarity protection
Discrete Output Function1 NO
Range Of ProductTelemecanique Inductive proximity sensors XS
Sensor NameXS4
Size62 mm
Ip Degree Of ProtectionIP68 double insulation conforming to IEC 60529
Body Typefixed
Sensor Typeinductive proximity sensor
Switching Capacity In Ma<= 200 mA DC overload and short-circuit protection
Output Circuit TypeDC
