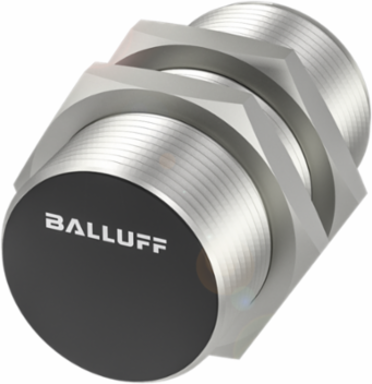

Balluff BES M30MI-PSC15B-S04G Inductive Sensor, Ø 30 x 65 mm, PNP Normally Open, 15 mm Range, IP67
Balluff BES M30MI-PSC15B-S04G Inductive Sensor, Ø 30 x 65 mm, PNP Normally Open, 15 mm Range, IP67
- MPN: BES M30MI-PSC15B-S04G
- PPN: BAL-BES00AF
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$73.07/ EA
Description
Engineered for precision and reliability, the inductive standard sensors from Balluff, specifically the BES00AF model, are ideal for various automation and control applications. With a switching frequency of 100 Hz and a robust PNP normally open output, these sensors ensure effective performance in a wide range of environments. Designed to withstand harsh conditions, they feature an IP67 rating and can operate in ambient temperatures from -25°C to 70°C. The compact dimensions of Ø 30 x 65 mm make them suitable for flush mounting, while their durable brass housing, nickel-free coated, guarantees longevity. With a sensing range of 15 mm and a versatile operating voltage of 10 to 30 VDC, these sensors are a reliable choice for modern industrial applications.
Specifications
Specifications
- Country of Origin
- Hungary
- Style
- M30x1.5
- Range
- 15 mm
- Switching frequency
- 100 Hz
- Material sensing surface
- PA 12
- Operating voltage Ub
- 10...30 VDC
- IP rating
- IP67
DimensionØ 30 x 65 mm
Installationfor flush mounting
Switching outputPNP Normally open (NO)
Housing materialBrass, Nickel-free coated
ConnectionConnector, M12x1-Male, 4-pin
Ambient temperature-25...70 °C
Approval/ConformityCE; UKCA; cULus; WEEE
