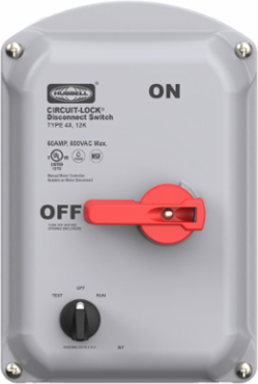

Hubbell Wiring Device-Kellems HBLDS100RCJ Industrial Grade 100A Motor Disconnect Switch with Jog, IP69k
- MPN: HBLDS100RCJ
- UPC: 783585763422
- PPN: HBL-HBLDS100RCJ
- UNSPSC: 39122205
CAD
$845.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Industrial Grade, Motor Disconnect, Unfused Switch, Non-Metallic Sloped Replacement Cover for 100A HBLDS100 and HBLDS100T Series With Jog, cULus, NSF, CE, UL 508 / UL 60947-4-1A
Features
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- Factory installed Hold, Off, Auto jog switch for increased safety and point of use communication to PLC
- IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications
- Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
- Product rating are permanently laser-marked and will not wash off
- Jog Switch
Specifications
Key Specifications
- Country of Origin
- United States
- Description - Slang
- Industrial Grade, Motor Disconnect, Unfused Switch, Non-Metallic Sloped Replacement Cover for 100A With Jog, HBLDS100 and HBLDS100T Series
- Ingress Protection
- IP69k, NEMA Type 4X, 12
- Enclosure
- IP69k and UL Type 4X, 12
- Operating Cycles
- 10,000 Cycles Minimum
- Special Features
- Jog Switch
- Type
- Accessories
- General Literature Asset 1 Display Text
- Circuit-Lock® Rounded Sloped Top Motor Disconnects
- Shape
- Rounded Top
- Class Code
- A16
- Harmonization Code
- 8538908180
- Sub Class Code
- A16A260
- Series
- Non-Fused
- BOX SIZE
- (in)
ColorGray
Industry Standard(s)cULus Listed
ApplicationHeavy Duty Industrial and/or Washdown
Environmental ConditionsIndoor and Outdoor
Operating TemperatureWithout Impact Maximum continuous 75°C and minimum -40 °C
StandardcULus Listed
Weight1.2 lb.
Enclosure TypeIP69k and UL Type 4X, 12
StyleReplacement Cover
Freight Class Code06168002
Image Actual Or RepresentativeA
Material - Mounting HardwareStainless Steel Screw Mounting
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783585763422
