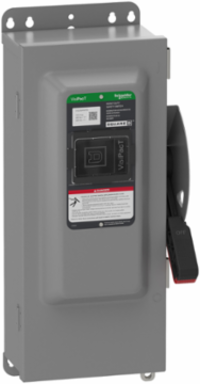

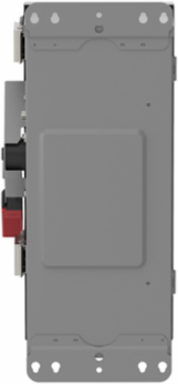

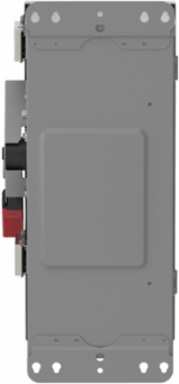

Square D VHU363AWKGL Heavy Duty Safety Switch, 100A, 600V, 3 Pole, NEMA 12, 9 kg
- MPN: VHU363AWKGL
- PPN: SCH-VHU363AWKGL
CAD
$966.03
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This heavy-duty safety switch from Schneider Electric is engineered to provide robust protection and reliable performance in power distribution applications. Rated at 100A and capable of handling up to 600V across three poles, it ensures safe and efficient disconnection of electrical circuits. With a NEMA 12 enclosure, this switch is designed for use in challenging environments, protecting against dust and moisture. Its durability and superior construction make it an ideal solution for industrial settings where safety and operational integrity are paramount.
Features

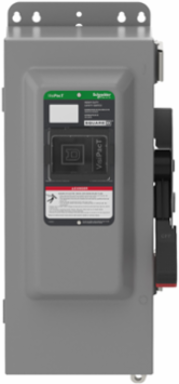

- The integrated heavy-duty viewing window provides instant visual confirmation of the knife-blade status without opening the enclosure door. This design minimizes the risk of arc flash incidents, streamlining lockout-tagout (LOTO) workflows and saving valuable troubleshooting time for facility maintenance personnel.
- Rated for 100 Amps and up to 600V AC/DC across a 3-pole configuration, this heavy-duty single-throw safety switch delivers a maximum motor power rating of up to 100 hp at 600V AC. The non-fusible design relies on your upstream circuit breakers or motor circuit protectors to handle high-fault current overloads, offering efficient, space-saving circuit isolation.

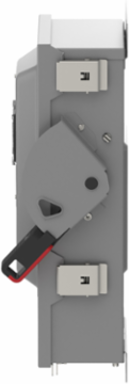

- Built with a dual-cover interlock and a quick-make, quick-break operating mechanism, this switch forces the internal blades open or closed rapidly, regardless of the speed at which the handle is thrown.

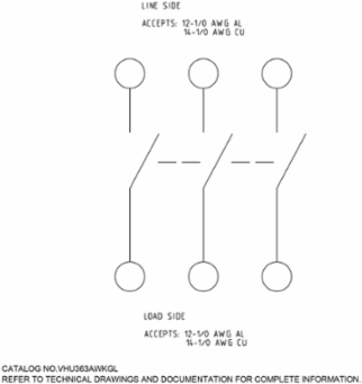

- his 3-wire unit comes equipped with factory-installed equipment ground lugs and accommodates a flexible conductor range from AWG 14 to AWG 1/0 copper, or AWG 12 to AWG 1/0 aluminum. For added application versatility, a solid neutral assembly kit can easily be field-installed to adapt to changing system configurations.
- This safety switch is fully certified to UL98, CSA C22.2 No. 4, and NEMA KS1 standards, carrying the UL Listed file E2875 for guaranteed regulatory compliance.
Documentation & Downloads

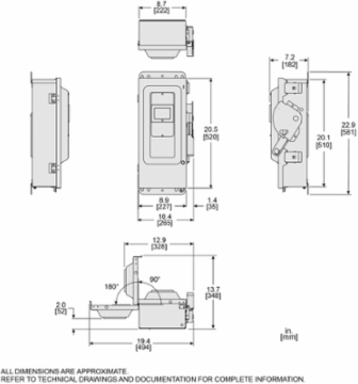

Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 7.15 in |
|---|
Complementary Attributes
| Line Rated Current | 100 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Motor Power Hp | 20 hp at 240 V AC 50/60 Hz for 1 phase motors40 hp at 240 V AC 50/60 Hz for 3 phase motors, 40 hp at 480 V AC 50/60 Hz for 1 phase motors, 75 hp at 480 V AC 50/60 Hz for 3 phase motors, 40 hp at 600 V AC 50/60 Hz for 1 phase motors, 100 hp at 600 V AC 50/60 Hz for 3 phase motors20 hp at 250 V DC, 50 hp at 600 V DC |
| Carbon Footprint Of The Distribution Phase [A4] | 2.7383941227168256, 3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.32277916703249643, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 30 kg CO2 eq., 30.34737347722995 |
| Local Publishable Date | 2026-06-23 |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | heavy application |
| Disconnector Device Type | non-fusible disconnect |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Services | factory installation |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP2303036EN |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 20.49 in |
| Certificate Agency | UL listed file E2875 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509045 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Tightening Torque | 50-50 lbf.in (1 AWG...3/0 AWG)45-45 lbf.in (6 AWG...4 AWG), 40-40 lbf.in 8.367-8.367 mm² (8 AWG), 35-35 lbf.in 2.06-5.261 mm² (14 AWG...10 AWG) |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 22 kg CO2 eq., 21.882822613347244 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 56 kg CO2 eq., 55.754490053163416 |
| Local Data Status | Publishable |
| Pre Comm Date | 2023-04-05 |
| Stocking Flag | Y |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2530 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 12 AWG...1/0 AWG aluminium14 AWG...1/0 AWG copper |
| Device Composition | field installed kit available |
| Electrical Connection | lugs |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 111 kg CO2 eq. |
| Wiring Configuration | 3-wire |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600V and rated current 60A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 12, Standards UL98 & NEMA KS1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 83 |
| Width Nominal | 8.92 in |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Package Weight(Lbs) | 8.852 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 111.04585943348992 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2303036EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2303036EN |
| Nema Degree Of Protection | NEMA 12 galvannealed steel |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
