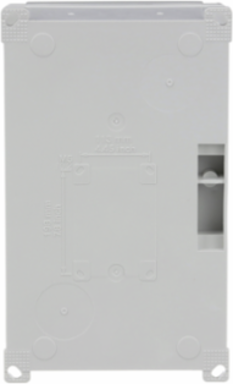

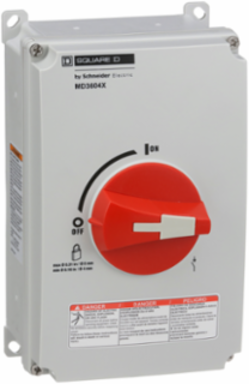

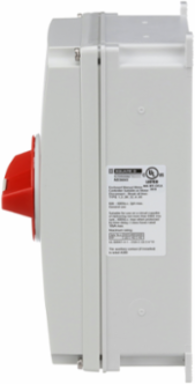

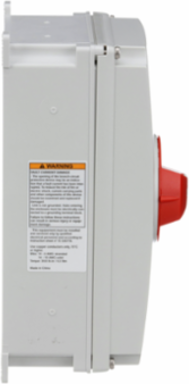

Schneider Electric MD3604X Motor Disconnect Switch 3 Pole 60A NEMA 4X 20HP at 240V AC
- MPN: MD3604X
- PPN: SCH-MD3604X
CAD
$182.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The MD motor disconnect switch is listed UL 508 Suitable for Motor Control (UL File E164864) and conforms to IEC standard 60947-3. It is in a compact NEMA 4X enclosure suitable for use in NEMA 1, 3, 3R, 4, 4X, and 12 applications. This three pole 60 A motor disconnect switch has a 20 HP rating at 240 VAC, a 40 HP rating at 480 VAC and a 40 HP rating at 600VAC. The red handle interlock prevents the removal of the cover when the switch is in the ON position. This MD motor disconnect switch has an extremely small footprint. It is 6.38 inches tall, 3.9 inches wide and 4.37 deep. Switch is UL listed and CSA certified.
Features
- The Schneider Square D MD3604X is a 60-Amp, 3-pole non-fusible motor disconnect switch. It is designed to provide a local, visible means of disconnecting power to a motor, allowing for safe maintenance or emergency shutdown. It is frequently used in industrial automation, HVAC systems, and food processing environments where machinery must be isolated from its power source quickly.
- The MD3604X is housed in a rugged, polycarbonate NEMA 4X enclosure. This rating ensures it is water-tight, dust-tight, and highly resistant to corrosion. It is specifically designed for "washdown" areas (common in food and beverage plants) and is suitable for use in NEMA 1, 3, 3R, 4, 4X, and 12 applications, making it one of the most versatile disconnects for harsh indoor or outdoor conditions.
- This switch is built for heavy-duty performance across various industrial voltages: 20 HP at 240V AC , 40 HP at 480V AC , 40 HP at 600V AC With a 600V AC maximum rating, it can handle most standard 3-phase industrial motor loads found in North American manufacturing.
- One of the primary advantages of the MD series is its extremely small footprint. Measuring approximately 8.27" high, 4.94" wide, and 4.37" deep, it is significantly smaller than a traditional sheet-metal safety switch. This makes it the perfect solution for mounting directly on machines or in crowded control areas where space is at a premium.
- The switch features a high-visibility red handle that is fully OSHA lockout/tagout compatible. It can be padlocked in the "OFF" position to ensure worker safety. Additionally, the handle includes a safety interlock that prevents the enclosure cover from being removed while the switch is in the "ON" position, preventing accidental exposure to live parts.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, Tunisia, United States
Depth4.37 in
Complementary Attributes
- Maximum Horse Power Rating
- 20 hp 220/240 V AC40 hp 440/480 V AC, 40 hp 600 V AC
Line Rated Current60 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1909
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Product Or Component Type
- Motor Disconnect Switch
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width Nominal
- 4.94 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509025
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV switch - disconnector
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id3
Function Option IdSTANDARD
Product Kit IdentifierN
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductMD
Sustainable PackagingNo
Height Nominal8.27 in
Certificate AgencyUL Listed
Package Weight(Lbs)949.0 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Nema Degree Of ProtectionNEMA 4X
Packaging Without Single Use PlasticYes
General Attributes
- Product Or Component Type
- Motor Disconnect Switch
Range Of ProductMD
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
