Schneider Electric ILS1M851PB1A0 integrated drive ILS with stepper motor - 24..36V - I/O for motion sequence - 5A
Schneider Electric ILS1M851PB1A0 integrated drive ILS with stepper motor - 24..36V - I/O for motion sequence - 5A
- MPN: ILS1M851PB1A0
- PPN: SCH-ILS1M851PB1A0
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2023.63/ EA
Description
integrated drive ILS with stepper motor - 24..36V - I/O for motion sequence - 5A
Specifications
Environment
- Product Certifications
- cUL || UL || TÜV
- Ambient Air Temperature For Operation
- 50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)
- Vibration Resistance
- 20 m/s² 10-500 Hz) 10 cycles EN/IEC 60068-2-6
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP41 shaft bushing: conforming to EN/IEC 60034-5 || IP54 total except shaft bushing: conforming to EN/IEC 60034-5
StandardsEN 61800-3:2001, second environment || EN/IEC 61800-3 || EN 61800-3 : 2001-02 || IEC 61800-3, Ed 2 || EN/IEC 50178 || EN 50347 || IEC 60072-1
Shock Resistance150 m/s² 1000 shocks EN/IEC 60068-2-29
Permissible Ambient Air Temperature Around The Device110 °C motor
Relative Humidity15-85 % without condensation
Operating Altitude<= 1000 m without derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1411002EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1411002EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Circle Diameter Of The Mounting Holes
- 99 mm
- Maximum Mechanical Speed
- 2000 rpm
- Maximum Switching Current
- 100 mA per output || 200 mA total
- Mounting Support
- flange
- Rotor Inertia
- 1.1 kg.cm²
- Centring Collar Depth
- 2 mm
- Second Shaft
- without second shaft end
- Shaft Length
- 30 mm
- Voltage State 0 Guaranteed
- -3...4.5 V
- Motor Flange Size
- 85 mm
- Number Of Mounting Holes
- 4
- Discrete Output Voltage
- 10...30 V
- Mounting Holes Diameter
- 6.5 mm
- Type Of Cooling
- natural convection
- Shaft End
- untapped
- Protection Type
- safe torque off || overload of output voltage || short circuit of the output voltage
- Accuracy Error
- +/- 6 arc min
- Maximum Axial Force Fa
- 170 N tensile force) || 30 N force pressure)
- Voltage State 1 Guaranteed
- 15...30 V
Current Consumption5000 mA maximum continuous
Commissioning InterfaceRS485 9.6, 19.2 and 38.4 kbauds)
Maximum Radial Force Fr100 N
Number Of Motor Stacks1
Continuous Stall Torque2 N.m
Discrete Input Current10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 10-10 mA at 24 V 24 V signal interface
MarkingCE
Net Weight2.6 kg
Centring Collar Diameter60 mm
Peak Stall Torque2 N.m
Shaft Diameter12 mm
Supply Voltage Limits18-40 V
Speed Feedback Resolution20000 points/turn
Service Life In Hours20000 h bearing
Feedback Typeindex pulse
Transmission Rate9.6, 19.2 and 38.4 kbauds

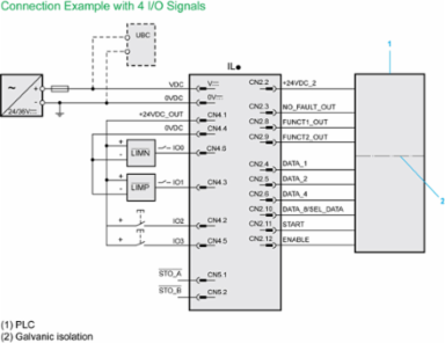

Input/Output Type4 signals (each be used as input or output)
Associated Fuse Rating10 A
Specifications
- Range Of Product
- Lexium integrated drive
- Network Type
- DC
- Number Of Motor Poles
- 6
- Product Or Component Type
- motion integrated drive
- Length
- 140.6 mm
- Communication Interface
- I/O for motion sequence, integrated
- Motor Type
- 3-phase stepper motor
- Electrical Connection
- printed circuit board connector
- Device Short Name
- ILS
Holding Torque2 N.m
Winding Typemedium speed of rotation and medium torque
Holding Brakewithout
Network Number Of Phasessingle phase
[Us] Rated Supply Voltage36 V || 24 V
Gear Box Typewithout
Nominal Speed200 rpm 24 V || 400 rpm 36 V
Nominal Torque2 N.m
