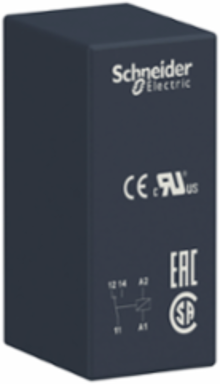

Schneider Electric RSB1A120P7 Harmony Electromechanical Relay, 12A, 1 C/O, 230V AC, IP40

  • MPN: RSB1A120P7
  • PPN: SCH-RSB1A120P7
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $15.05

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony RSB interfacing plug-in relay has a control coil voltage of 230V AC and has 1 changeover contact single pole double throw with a rating of 12A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Austria, Brazil, France, United States

    Complementary Attributes

    Control Circuit Type
    AC
    Maximum Switching Capacity
    3000 VA/336 W
    Minimum Switching Capacity
    120 mW 10 mA, 12 V
    Rated Current
    12 A
    Line Rated Current12 A
    Maximum Switching Voltage300 V DC IEC
    Minimum Switching Current10 mA

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Control Type
    without lockable test button, without lockable test button
    Operating Time
    20 ms operating, 20 ms reset
    Certificate Agency
    EAC, UL, CSA
    Drop-out Voltage Threshold
    >= 0.15 Uc AC, >= 0.15 Uc AC>= 0.15 Uc AC, >= 0.15 Uc AC
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.0250506692, 0 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.1 kg CO2 eq., 0.1335755258
    Local Data Status
    Publishable
    Return Indicator
    N
    Stock Policy
    2
    Weee Product Category
    5
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1907
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Average Coil Consumption
    0.75 VA AC
    Compatibility Code
    RSB
    Contacts Type And Composition
    1 C/O
    Electrical Durability
    100000 cycles, 12 A at 250 V, AC-1 NO100000 cycles, 6 A at 250 V, AC-1 NC
    Marking
    CE
    Operating Position
    any position
    Product Or Component Type
    plug-in relay
    Range Of Product
    Harmony Electromechanical Relays
    Returnability
    No
    Sale Per Indivisible Quantity
    10
    Shape Of Pin
    flat (PCB type)
    Software Version
    v5.9.4
    Sustainable Packaging
    No
    Test Levels
    level A group mounting
    Control Circuit Voltage 10
    230 V AC 50/60 Hz
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    The main purpose of the RSB Interface plug-in Relay is having at least 2 C/O contacts for switching by a small control signal controlling a larger load current or voltage. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance.
    Energy Model - Manufacturing [A1-a3]
    Energy model used: Electricity Mix; Production mix; Low voltage; CN
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Recyclability Potential In %
    75
    [Ithe] Conventional Enclosed Thermal Current
    12 A -40-40 °C
    [Ui] Rated Insulation Voltage
    400 V IEC 60947
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8536490075
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Operating Rate<= 600 cycles/hour under load, <= 600 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 600 cycles/hour under load, <= 600 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
    Vibration Resistance+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
    [Uc] Control Circuit VoltageAC 50/60 Hz, 230 V
    Carbon Footprint Of The Distribution Phase [A4]0.0019614723, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0000964245
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]7 kg CO2 eq., 7.3045550228
    Local Publishable Date2026-01-12
    Stocking FlagY
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Average Resistance33000 Ohm AC 20 °C +/- 10 %
    Contacts Materialsilver alloy (AgNi)
    Dielectric Strength1000 V AC between contacts2500 V AC between poles5000 V AC between coil and contact
    Load Current12 A 250 V AC12 A 28 V DC
    Mechanical Durability10000000 cycles
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Protection CategoryRT I
    Relay Typeinterface relay
    Safety Reliability DataB10d = 100000
    Series NameRSB series
    Shock Resistance10 gn 11 ms) not operating IEC 60068-2-275 gn 11 ms) in operation IEC 60068-2-27
    Status Ledwithout
    Switching Voltage12 V
    Total Lifecycle Carbon Footprint7 kg CO2 eq.
    Pep CodeENVPEP2403026EN
    Pep Verification Date2023-12-07
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Reference Lifetime In Y10
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    [Ie] Rated Operational Current12 A AC-1/DC-1) NO IEC6 A AC-1/DC-1) NC IEC
    [Ue] Rated Operational Voltage184...345 V AC 50/60 Hz
    [Uimp] Rated Impulse Withstand Voltage3.6 kV IEC 61000-4-5
    Package Weight(Lbs)12.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C AC), -40-70 °C AC)-40-70 °C AC), -40-70 °C AC)
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    7.4652391145
    Eu Rohs Directive
    Compliant
    Packaging Made With Recycled Cardboard
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2403026EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Environmental DisclosureENVPEP2403026EN
    Ip Degree Of ProtectionIP40 conforming to IEC 60529
    Packaging Without Single Use PlasticNo
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2023-12-07
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    plug-in relay
    Range Of ProductHarmony Electromechanical Relays

    ETIM

    ETIM 8
    EC001437
    ETIM 9EC001437

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    complete product
    Presentation Of Legendwithout
