Schneider Electric RXG21B7PV interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, pre assembled, lockable test but to n, 24V AC
Schneider Electric RXG21B7PV interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, pre assembled, lockable test but to n, 24V AC
- MPN: RXG21B7PV
- PPN: SCH-RXG21B7PV
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$46.22/ EA
Description

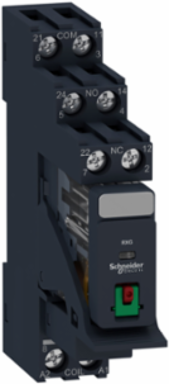

This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and a varistor protection module. This is a 5A, 24Vac, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The relay offers single-step lockable test button. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.067Kg. Its design fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.
Specifications
Environment
- Product Certifications
- EAC || CSA || UL || CE || DNV-GL
- Standards
- IEC 61810-1 || CSA C22.2 No 14 || UL 508 || IEC 61984
- Relative Humidity
- 10-85 %
- Ip Degree Of Protection
- IP20
Ambient Air Temperature For Operation-40-70 °C
Vibration Resistance3 gn +/- 1.5 mm 10-150 Hz)in operation || 5 gn +/- 1.5 mm 10-150 Hz)not in operation
Ambient Air Temperature For Storage-40-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406006EN
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Toxic Heavy Metal FreeYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Utilisation Coefficient
- 20 %
- Safety Reliability Data
- B10d = 100000
- Insulation Resistance
- 1000 MOhm 500 V DC
- Torque Value
- 0.8 N.m || 7.0 lbf.in
- Test Levels
- level A group mounting
- Pollution Degree
- 2
- Dielectric Strength
- 1000 V AC between contacts micro disconnection || 1300 V between terminals and base basic insulation || 3000 V between terminals and LTB area basic insulation || 3000 V AC between poles basic insulation || 5000 V AC between coil and contact reinforced insulation
- Net Weight
- 0.065 kg
- Maximum Switching Voltage
- 250 V
- Device Presentation
- complete product
- Average Coil Consumption
- 0.70 VA AC 50...60 Hz
- [Ui] Rated Insulation Voltage
- 250 V IEC
- Mechanical Durability
- 10000000 cycles
- Mounting Position
- any position
- Load Current
- 5 A
- Minimum Switching Capacity
- 50 mW 10 mA, 5 V DC
Maximum Switching Capacity1250 VA AC || 150 W DC
[Uc] Control Circuit Voltage24 V AC 50/60 Hz
Operating Rate<= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
Protection CategoryRT I
Contacts Materialsilver alloy (AgSnO2In2O3)
Shock Resistance20 gn in operation || 100 gn not in operation
Status Ledwithout
Colour Of Covertransparent
Control Typelockable test button
Connections - Terminalsconnector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
[Ie] Rated Operational Current5 A 30 V DC) UL || 5 A 30 V DC) IEC || 5 A 250 V AC) IEC || 5 A 250 V AC) UL
Electrical Durability100000 cycles resistive
Resistance260 Ohm +/- 10 %
Overvoltage CategoryIII
Drop-Out Voltage Threshold>= 0.3 Uc AC
Specifications
- Range Of Product
- Harmony Electromechanical Relays
- Series Name
- interface relay
- Device Short Name
- RXG
Product Or Component Typepre-assembled plug-in relay with socket
Contacts Type And Composition2 C/O
[Ithe] Conventional Enclosed Thermal Current5 A
