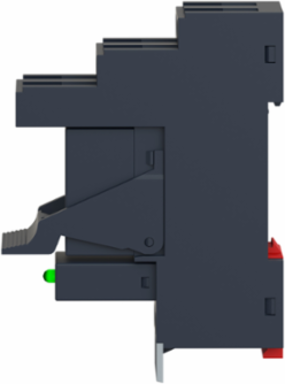

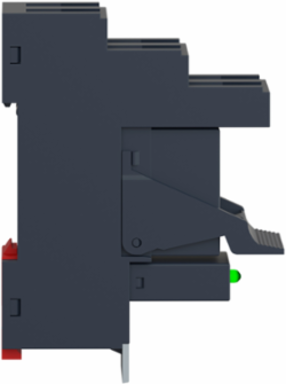

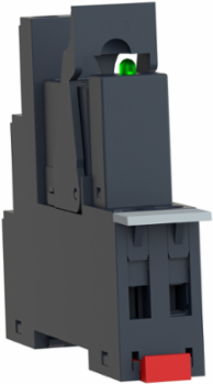

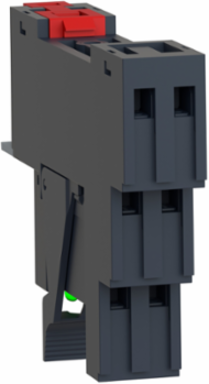

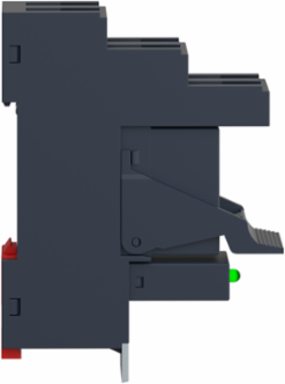

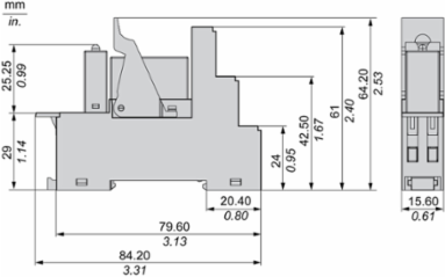

Schneider Electric RSB2A080JDPV Harmony 8A 2CO Plug-In Relay with LED, 12V DC
- MPN: RSB2A080JDPV
- PPN: SCH-RSB2A080JDPV
CAD
$36.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

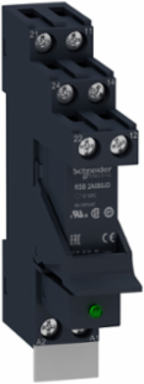

This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled electromechanical relay mounted on a separate contact terminal socket with diode protection module and maintaining clamp. This is a 8A, 12Vdc, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The protection module comes with a green LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.057Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. This RSB plug-in relay range comprises of 12A relays with 1 CO contact, 16A relays with 1 CO contact, and 8A relays with 2 CO contacts.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia
Complementary Attributes
- Maximum Switching Capacity
- 2000 VA AC, 224 W DC
- Line Rated Current
- 8 A
- Minimum Switching Capacity
- 120 mW 10 mA, 12 V
- Rated Current
- 8 A
Control Circuit TypeDC
Maximum Switching Voltage300 V DC IEC
Minimum Switching Current10 mA
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1000 V AC between contacts, 2500 V AC between poles, 5000 V AC between coil and contact
- Load Current
- 8 A 250 V AC, 8 A 28 V DC
- Operating Time
- 20 ms operating, 20 ms reset
- Torque Value
- 0.8 N.m, 7.0 lbf.in
- Certificate Agency
- CE, UL, CSA, EAC
- [Uc] Control Circuit Voltage
- 24 V DC, 24 V
- Drop-out Voltage Threshold
- >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.1 Uc DC, >= 0.1 Uc DC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1002026769, 0.1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.5 kg CO2 eq., 0.5343021033
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1907
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Coil Consumption
- 0.45 W DC
- Compatibility Code
- RSB
- Contact Terminal Arrangement
- separate
- Contacts Type And Composition
- 2 C/O
- Mechanical Durability
- 30000000 cycles
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protection Category
- RT I
- Relay Type
- interface relay
- Safety Reliability Data
- B10d = 100000
- Series Name
- RSB series
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Test Levels
- level A group mounting
- Contacts Composition
- 2 C/O
- Control Circuit Type2
- DC
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The main purpose of the RSB Interface plug-in Relay is having at least 2 C/O contacts for switching by a small control signal controlling a larger load current or voltage. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance.
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; CN
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Recyclability Potential, In %
- 75
- [Ue] Rated Operational Voltage
- 9.6...13.2 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 3.6 kV IEC 61000-4-5
- Package Weight(Lbs)
- 55.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Durability100000 cycles, 8 A at 250 V, AC-1 NO, 100000 cycles, 4 A at 250 V, AC-1 NC
Operating Rate<= 600 cycles/hour under load, <= 600 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 600 cycles/hour under load, <= 600 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Shock Resistance10 gn 11 ms) not operating IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27
Vibration Resistance+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
[Ie] Rated Operational Current4 A AC-1/DC-1) NC IEC, 8 A AC-1/DC-1) NO IEC
Connections - Terminalsscrew connectors, connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end, connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end, connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end, connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
Carbon Footprint Of The Distribution Phase [A4]0.0078458891, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0003856979
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]5 kg CO2 eq., 5.1081547962
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Resistance360 Ohm DC 20 °C +/- 15 %
Contact Operationstandard
Contacts Materialsilver alloy (AgNi)
Control Typewithout lockable test button
Operating Positionany position
Product Or Component Typepre-assembled plug-in relay with socket
Range Of ProductHarmony Electromechanical Relays
ReturnabilityYes
Sale Per Indivisible Quantity30
Shape Of Pinflat (PCB type)
Status Ledwith
Switching Voltage12 V
Total Lifecycle Carbon Footprint6 kg CO2 eq.
Control Circuit Voltage24 V
Pep CodeENVPEP2403026EN
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
[Ithe] Conventional Enclosed Thermal Current8 A -40-40 °C
[Ui] Rated Insulation Voltage400 V IEC 60947
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-85 °C DC), -40-85 °C DC)-40-85 °C DC), -40-85 °C DC)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 5.7508911633
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2403026EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2403026EN
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- pre-assembled plug-in relay with socket
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Contractual Warranty Attributes
- Warranty Period
- 18 Months
Warranty18 Months
Overview Attributes
- Device Presentation
