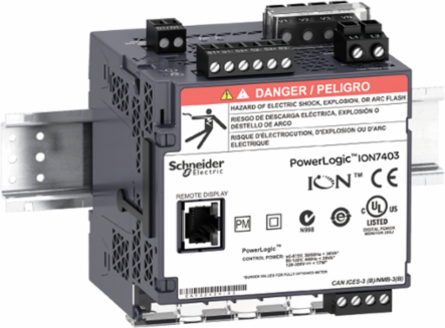

Schneider Electric METSEION7413A Power quality meter, PowerLogic ION7400, Advanced, transducer, 512 MB, 512 s/c
- MPN: METSEION7413A
- PPN: SCH-METSEION7413A
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Power quality meter, PowerLogic ION7400, Advanced, transducer, 512 MB, 512 s/c
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Canada
Depth90.8 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus RTU 115 kbauds - 2-wire, ION 115 kbauds - 2-wire, DNP3, IEC 61850, Modbus TCP/IPEthernet Modbus TCP/IP daisy chain 10/100 Mbit/s, RSTP 801.1d 2004, DLMS
- Communication Network Type
- IPv6 (internet protocol)
Communication ServiceNTP time synchronization, SMTP e-mail notification, RSTP support, DHCP, SNMP, PTP time synchronization
Communication Port SupportETHERNETscrew terminal block RS485mini B USB USB
Complementary Attributes
- Line Rated Current
- 10 A, 1 A, 5 A
Important Information Attributes
- Cybersecurity
- enable/disable communication ports, robust security logs, port hardening, password protection, Syslog protocol support
- Device Application
- revenue billing, WAGES metering, data aggregation, power monitoring
- Information Displayed
- voltage, current, frequency, power, energy consumption, harmonic distortion
- Measurement Accuracy
- current +/- 0.1 %, voltage +/- 0.1 %active energy +/- 0.2 %
- Number Of Poles
- 1P + N, 3P, 3P + N
- Type Of Measurement
- apparent power per phase, rmspower factor per phase, rms, currentvoltage total, frequency total, active and reactive power total, apparent power total, power factor total, active and reactive power per phase, rms, active and reactive energy, apparent energy total
- Certificate Agency
- CE, cULus, N998
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 1.530093881154107
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 32 kg CO2 eq., 32.04606541588121
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=PLSED310113EN_Web.pdf, PLSED310113EN
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Serviceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Device Short Name
- ION7413
- Energy Efficiency Optimized
- False
- Installation Category
- III
- Measurement Voltage
- 57-400 V AC 42...69 Hz between phase and neutral100-690 V AC 42...69 Hz between phases
- Mounting Mode
- clip-on
- Power Consumption In W
- 17 W
- Product Name
- PowerLogic ION7400
- Range
- PowerLogic
- Sampling Rate
- 512 samples/cycle
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2025-04
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- The functional unit of the PowerLogic PM8000 series is a high-precision power and energy meter designed for advanced monitoring and analysis. It operates with a low power consumption of 4.7 W in active mode and supports 100% runtime, with a total energy consumption of 411.72 kWh for active components for 10 years. It features robust cybersecurity with secure protocols (HTTPS, SFTP), Syslog support, and 50 configurable user accounts. With 512 MB memory, it supports 50 data logs, waveform captures, alarms, energy trends, and custom web pages. It offers precise event timestamping to ±1 ms using PTP, NTP, IRIG-B, GPS, and network time sync. The device includes 3 digital inputs, 1 digital output, and supports up to 4 I/O modules (relays, analog/digital I/Os). It operates in harsh environments (-25 to +70°C, 5–95% humidity, up to 3000 m altitude) and mounts via DIN rail with optional remote display.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 411.72
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 90.5 mm
- [Us] Rated Supply Voltage
- 20...60 V DC +/- 10 %
- Package Weight(Lbs)
- 854 g
- Warranty (In Months)
- 18
- Customs Code
- 9028300000
Data Recordingsequence of event recording, trending/forecasting, harmonics logs, time stamping, GPS synchronisation, waveform logs, min/max of instantaneous values, sag and swell logs, data logs, event logs, alarm logs, 64 data recorders
Electromagnetic Compatibilityelectrostatic discharge conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test conforming to IEC 61000-4-4surge immunity test conforming to IEC 61000-4-5conducted RF disturbances conforming to IEC 61000-4-6magnetic field at power frequency conforming to IEC 61000-4-8voltage dips and interruptions immunity test conforming to IEC 61000-4-11immunity to impulse waves conforming to IEC 61000-4-12conducted and radiated emissions conforming to EN 55022, conducted and radiated emissions conforming to EN 55011, conducted and radiated emissions conforming to FCC part 15, conducted and radiated emissions conforming to ICES-003conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579surge withstand (2...150 Hz) conforming to IEEE C37.90.1
Isolation VoltageIII400-690 V conforming to IEC 61010-1:ed. 3, III400-690 V conforming to EN 61010-1:ed. 3III347-600 V conforming to UL 61010-1:ed. 3, III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
Network Frequency50 Hz, 60 Hz
Power Quality AnalysisEN 50160 2010 compliance reportIEEE 519 2014 compliance report, IEC 61000-4-30 class A power quality measurement, up to the 63rd harmonicIEC 61000-4-15 harmonic distortion, EN 50160 2010 waveform capture, IEC 61000-4-30 class A voltage sag and swell detection, programmablity (logic and math functions)IEC 62586 power quality monitoring, IEC 61000-4-15 flicker, IEC 62586 disturbance direction detection, rapid voltage change
Web Servicescustomizable home page, file upload/download via FTP, file upload/download via SFTP, web server, alarm notification by e-mail, viewing of captured waveform (FTP), viewing of captured waveform (web), HTTPS server
Carbon Footprint Of The Distribution Phase [A4]0.5737616077149312, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.45060626220352684, 0.5 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]203 kg CO2 eq., 202.64310837690203
Local Data StatusPublishable
Return IndicatorN
Device TypeRelay, Control & Measurement - measuring, monitoring device
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1512006EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2333
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Product Kit IdentifierN
Display TypeWithout Display
Frequency Measurement Range42-69 Hz
Measurement Current50-10000 mA
Memory Capacity512 MB
Mounting SupportDIN rail
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typepower meter
ReturnabilityNo
Software Versionv6.3.2-2
Total Lifecycle Carbon Footprint237 kg CO2 eq.
Pep CodeENVPEP1406022_V2
Pep Verification Date2025-11-28
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Canada, CA
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %12
Width Nominal90.5 mm
Nbr. Of Units In Pkg.1
Take-backNo
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]2.6586
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 237.2436355438558
- Circularity Profile
- ENVEOLI1512006EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 9842.52 ft (3000 m)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 %
- Pep Verification Date
- 2025-11-28
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
China Rohs RegulationX
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Environmental DisclosureENVPEP1406022_V2
Ip Degree Of ProtectionIP30 conforming to IEC 60529
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1406022_V2
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- power meter
ETIM
- ETIM 8
- EC002301
ETIM 9EC002301
Output Attributes
- Number Of Outputs
- 1 pulse
Input Attributes
- Analogue Input Type
- voltage (impedance 5 MOhm)current (impedance 0.3 mOhm)
Number Of Inputs3 digital 30 V AC3 digital 60 V DC
