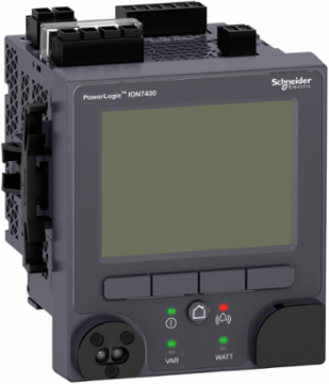

Schneider Electric METSEION7400A Power quality meter, PowerLogic ION7400, Advanced, integrated display, 512 MB, 512 s/c
- MPN: METSEION7400A
- PPN: SCH-METSEION7400A
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Power quality meter, PowerLogic ION7400, Advanced, integrated display, 512 MB, 512 s/c
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Canada, France, United States
Depth78.5 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus RTU 115 kbauds - 2-wire, ION 115 kbauds - 2-wire, DNP3, IEC 61850 10/100 Mbit/s, Modbus TCP/IP, Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s, RSTP 801.1d 2004, Ansi C12.19, DLMS 115 kbauds - 2-wire
- Communication Service
- DHCP, RSTP support, NTP time synchronization, SMTP e-mail notification, PTP time synchronization
Communication Port SupportETHERNET, screw terminal block RS485, optical probe fiber optic, mini B USB USB
Communication Network TypeIPv6 (internet protocol)
Complementary Attributes
- Line Rated Current
- 10 A, 5 A, 1 A
Important Information Attributes
- Cybersecurity
- Syslog protocol support, robust security logs, enable/disable communication ports, password protection, port hardening
- Device Application
- revenue billing, WAGES metering, data aggregation, power monitoring
- Information Displayed
- voltage, current, frequency, power, energy consumption, harmonic distortion
- Measurement Accuracy
- current +/- 0.1 %, voltage +/- 0.1 %, active energy +/- 0.2 %
- Network Frequency
- 50 Hz, 60 Hz
- Power Quality Analysis
- EN 50160 compliance report, IEC 61000-4-30 class A power quality measurement, up to the 63rd harmonic, harmonic distortion, waveform capture, IEC 61000-4-15 voltage sag and swell detection, IEC 62586 programmablity (logic and math functions), IEC 62586 power quality monitoring, IEC 61000-4-15 flicker, IEC 61000-4-30 class A disturbance direction detection, rapid voltage change
- Web Services
- customizable home page, file upload/download via FTP, file upload/download via SFTP, web server, alarm notification by e-mail, viewing of captured waveform (FTP), viewing of captured waveform (web), HTTPS server
- [Us] Rated Supply Voltage
- 90...415 V AC 45...65 Hz +/- 10 %, 110...415 V DC +/- 10 %
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 2.354316872709171
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 62 kg CO2 eq., 62.471819921736106
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=PLSED310113EN&p_File_name=PLSED310113EN_Web.pdf, PLSED310113EN
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1512006_V2
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2333
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Product Kit Identifier
- N
- Display Resolution
- 320 x 240 pixels QVGA
- Energy Efficiency Optimized
- False
- Installation Category
- III
- Memory Capacity
- 512 MB
- Mounting Support
- framework
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- power meter
- Returnability
- No
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 209 kg CO2 eq.
- Pep Code
- ENVPEP1512006EN
- Pep Verification Date
- 2025-03-21
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; High voltage; 2020; Canada, CA
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Chile, CL
- Recyclability Potential, In %
- 4
- Width Nominal
- 98 mm
- Package Weight(Lbs)
- 954 g
- Warranty (In Months)
- 18
Data Recordingalarm logs, waveform logs, sequence of event recording, event logs, sag and swell logs, data logs, harmonics logs, GPS synchronisation, time stamping, trending/forecasting, min/max of instantaneous values, 64 data recorders
Electromagnetic Compatibilityelectrostatic discharge conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, electrical fast transient/burst immunity test conforming to IEC 61000-4-4, surge immunity test conforming to IEC 61000-4-5, conducted RF disturbances conforming to IEC 61000-4-6, magnetic field at power frequency conforming to IEC 61000-4-8, voltage dips and interruptions immunity test (2...150 Hz) conforming to IEC 61000-4-11, immunity to impulse waves conforming to IEC 61000-4-12, conducted and radiated emissions conforming to EN 55022, conducted and radiated emissions conforming to EN 55011, conducted and radiated emissions conforming to FCC part 15, conducted and radiated emissions conforming to ICES-003, conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579, surge withstand conforming to IEEE C37.90.1
Isolation VoltageIII400-690 V conforming to IEC 61010-1:ed. 3, III400-690 V conforming to EN 61010-1:ed. 3, III347-600 V conforming to UL 61010-1:ed. 3, III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
Measurement Voltage57-400 V AC 42...69 Hz between phase and neutral, 100-690 V AC 42...69 Hz between phases
Number Of Poles1P + N, 3P, 3P + N
Type Of Measurementactive and reactive power per phase, rms, apparent power per phase, rms, power factor per phase, rmscurrent per phase, rms, voltage per phase, rms, frequency, active and reactive power total, apparent power total, power factor total, active and reactive energy, apparent energy
Certificate AgencyCE, cULus, N998
Carbon Footprint Of The Distribution Phase [A4]2.288449939197264, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.006420220073525087, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]142 kg CO2 eq., 142.0521727305075
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Device Short NameION7400
Display Typecolour TFT LCD
Frequency Measurement Range42-69 Hz
Measurement Current50-10000 mA
Mounting Modeflush-mounted
Power Consumption In Va18 VA 415 V AC
Product NamePowerLogic ION7400
RangePowerLogic
Sampling Rate512 samples/cycle
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTo measure energy consumption and display the information on a screen, capable of operating within the following electrical parameters:& 10The ION7400 Power Meter operates within voltage ranges of 90-415V (50/60Hz) at <lt/>36VA, 90-120V (400Hz) at <lt/>28VA, and 120-300V at 17W, with current ratings of 1A for 0.5 seconds and 5A for 0.2 seconds, designed for 10 years of use at a 100% rate, consuming 5W in active mode (10% of the time) and 4W in standby mode (90% of the time), all in compliance with relevant standards.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh414.348
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal112 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Take Back
- No
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- -25-70 °C-25-70 °C
- Environmental Disclosure
- ENVPEP1512006EN
- Operating Altitude
- 9842.52 ft (3000 m)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 %
- Pep Verification Date
- 2025-03-21
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ip Degree Of ProtectionIP54 front: conforming to IEC 60529, IP30 body: conforming to IEC 60529
Recycled Metal Content At Cr Level0 %
Carbon Footprint209.17317968422356
Circularity ProfileENVEOLI1512006_V2
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1512006EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- power meter
ETIM
- ETIM 8
- EC002301
ETIM 9EC002301
Output Attributes
- Number Of Outputs
- 1 pulse
Input Attributes
- Analogue Input Type
- voltage (impedance 5 MOhm), current (impedance 0.3 mOhm)
Number Of Inputs3 digital 30 V AC, 3 digital 60 V DC
