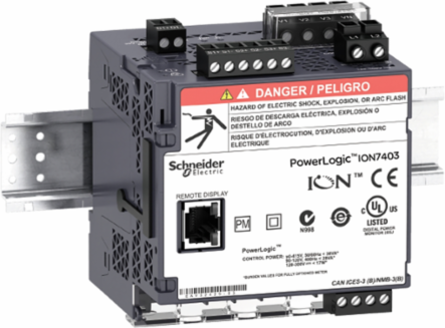

Schneider Electric METSEION7403A Power quality meter, PowerLogic ION7400, Advanced, transducer, 512 MB, 512 s/c
Schneider Electric METSEION7403A Power quality meter, PowerLogic ION7400, Advanced, transducer, 512 MB, 512 s/c
- MPN: METSEION7403A
- PPN: SCH-METSEION7403A
- UNSPSC: 41113708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Power quality meter, PowerLogic ION7400, Advanced, transducer, 512 MB, 512 s/c
Features
- Fast access to timely, critical information for energy, electrical network, and asset management
- More detailed PQ compliance reporting, and expertlevel power quality and rootcause analytics
- Forecasting to help ensure your electrical system avoid overloads, unbalances or high peak demand
- Ensure energy efficiency and optimized costs by understanding how energy is being consumed
- Perform subbilling or allocate cost to encourage energyefficient behavior, reduce PF penalities
- Support participation in demand response or variable tariff (TOU, RTP) programs
- Maximize use of capacity by performing load studies and infrastructure expansion planning
- Patented ION Programming allows for full alarm/calc customization, control and more
Specifications
Communications & Management Attributes
- Communication Port Protocol
- Modbus RTU 115 kbauds - 2-wire, ION 115 kbauds - 2-wire, DNP3, IEC 61850, Modbus TCP/IP, Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s, RSTP 801.1d 2004, DLMS
- Communication Service
- SMTP e-mail notification, NTP time synchronization, RSTP support, DHCP, PTP time synchronization
Communication Port SupportETHERNET, screw terminal block RS485, mini B USB USB
Communication Network TypeIPv6 (internet protocol)
Conformance Attributes
- Product Certifications
- CE, cULus, N998
StandardsIEC 62052-11, IEC 61557-12, IEC 62053-22, IEC 62053-24, IEC 61326-1, IEEE 1588, IEC 62586
Complementary Attributes
- Line Rated Current
- 1 A, 5 A, 10 A
Important Information Attributes
- Cybersecurity
- enable/disable communication ports, port hardening, Syslog protocol support, password protection, robust security logs
- Device Application
- revenue billing, WAGES metering, data aggregation, power monitoring
- Information Displayed
- voltage, current, frequency, power, energy consumption, harmonic distortion
- Measurement Voltage
- 57-400 V AC 42...69 Hz between phase and neutral, 100-690 V AC 42...69 Hz between phases
- Poles Description
- 3P + N, 3P, 1P + N
- Type Of Measurement
- apparent power per phase, rms, power factor per phase, rms, current, voltage, frequency total, active and reactive power total, apparent power total, power factor total, active and reactive power per phase, rms, active and reactive energy total, apparent energy per phase, rms
- Us Rated Supply Voltage2
- 90...415 V AC 45...65 Hz +/- 10 %, 110...415 V DC +/- 10 %
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 2 kg CO2 eq., 1.530093881154107
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 32 kg CO2 eq., 32.04606541588121
- Isolation Voltage
- III400-690 V conforming to IEC 61010-1:ed. 3, III400-690 V conforming to EN 61010-1:ed. 3, III347-600 V conforming to UL 61010-1:ed. 3, III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
- Local Data Status
- Publishable
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Device Short Name
- ION7403
- Energy Efficiency Optimized
- False
- Measurement Current
- 50-10000 mA
- Mounting Mode
- clip-on
- Package Weight Lbs
- 854 g
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PowerLogic
- Sampling Rate
- 512 samples/cycle
- Total Lifecycle Carbon Footprint
- 237 kg CO2 eq.
- Medium Desc
- Power quality meter, PowerLogic ION7400, Advanced, transducer, 512 MB, 512 s/c
- Product Kit Identifier
- N
- Database Version
- 2025-04
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- The functional unit of the PowerLogic PM8000 series is a high-precision power and energy meter designed for advanced monitoring and analysis. It operates with a low power consumption of 4.7 W in active mode and supports 100% runtime, with a total energy consumption of 411.72 kWh for active components for 10 years. It features robust cybersecurity with secure protocols (HTTPS, SFTP), Syslog support, and 50 configurable user accounts. With 512 MB memory, it supports 50 data logs, waveform captures, alarms, energy trends, and custom web pages. It offers precise event timestamping to ±1 ms using PTP, NTP, IRIG-B, GPS, and network time sync. The device includes 3 digital inputs, 1 digital output, and supports up to 4 I/O modules (relays, analog/digital I/Os). It operates in harsh environments (-25 to +70°C, 5–95% humidity, up to 3000 m altitude) and mounts via DIN rail with optional remote display.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; Canada, CA
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2020; United States, US
- Installation Category
- III
- Product Name
- PowerLogic ION7400
Data Recordingtime stamping, trending/forecasting, waveform logs, sequence of event recording, min/max of instantaneous values, harmonics logs, data logs, sag and swell logs, GPS synchronisation, event logs, alarm logs, 64 data recorders
Electromagnetic Compatibilityelectrostatic discharge conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, electrical fast transient/burst immunity test conforming to IEC 61000-4-4, surge immunity test conforming to IEC 61000-4-5, conducted RF disturbances (2...150 Hz) conforming to IEC 61000-4-6, magnetic field at power frequency conforming to IEC 61000-4-8, voltage dips and interruptions immunity test conforming to IEC 61000-4-11, immunity to impulse waves conforming to IEC 61000-4-12, conducted and radiated emissions conforming to EN 55022, conducted and radiated emissions conforming to EN 55011, conducted and radiated emissions conforming to FCC part 15, conducted and radiated emissions conforming to ICES-003, conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579, surge withstand conforming to IEEE C37.90.1
Measurement Accuracycurrent +/- 0.1 %, voltage +/- 0.1 %, active energy +/- 0.2 %
Network Frequency50 Hz, 60 Hz
Power Quality AnalysisEN 50160 2010 compliance report, IEEE 519 2014 compliance report, IEC 61000-4-30 class A power quality measurement, up to the 63rd harmonic, IEEE 519 2014 harmonic distortion, IEC 61000-4-30 class A waveform capture, voltage sag and swell detection, IEC 62586 programmablity (logic and math functions), IEC 62586 power quality monitoring, IEC 61000-4-15 flicker, disturbance direction detection, rapid voltage change
Web Servicescustomizable home page, file upload/download via FTP, file upload/download via SFTP, web server, alarm notification by e-mail, viewing of captured waveform (FTP), viewing of captured waveform (web), HTTPS server
Carbon Footprint Of The Distribution Phase A40.5737616077149312, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.45060626220352684, 0.5 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6203 kg CO2 eq., 202.64310837690203
Us Rated Supply Voltage590...415 V AC 45...65 Hz +/- 10 %, 110...415 V DC +/- 10 %
Local Publishable Date2025-07-10
ServiceabilityNo
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1512006EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Display TypeWithout Display
Frequency Measurement Range42-69 Hz
Memory Capacity512 MB
Mounting SupportDIN rail
Power Consumption In VA18 VA 415 V AC
Product Or Component Typepower meter
ReturnabilityNo
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Stocking FlagY
Pep CodeENVPEP1406022_V2
Pep Verification Date2025-11-28
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2No energy used
Energy Model End Of Life C1 C4 2Global, European and French datasets are used.
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 237.2436355438558
- Circularity Profile
- ENVEOLI1512006EN
- IP Degree Of Protection
- IP30 conforming to IEC 60529
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1406022_V2
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
ROHS Exemption InformationYes
China ROHS RegulationX
Ambient Air Temperature For Storage-40-85 °C
Environmental DisclosureENVPEP1406022_V2
Operating Altitude9842.52 ft (3000 m)
Packaging Without Single Use PlasticNo
Relative Humidity5-95 %
Pep Verification Date2025-11-28
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- power meter
Output Attributes
- Number Of Outputs
- 1 pulse
Input Attributes
- Analogue Input Type
- voltage (impedance 5 MOhm), current (impedance 0.3 mOhm)
Number Of Inputs3 digital 30 V AC, 3 digital 60 V DC
Specifications
- Depth
- 90.8 mm
