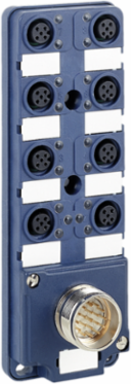

Telemecanique Sensors ABE9C1281L05 IP67 Passive Splitter Box with 8 Channels, 5m Cable, 24V DC, 4A
- MPN: ABE9C1281L05
- PPN: SCH-ABE9C1281L05
CAD
$227.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Advantys ABE9 range, an offer of IP67 passive splitters boxes. This passive splitter box for M12 connectors make it possible to eliminate long and difficult cabling operations. It provides 8 channels and 16 ways. It is furnished with 5-pin female M12 connectors and 5m pre-wired cable connector for electrical connection. It is a splitter box with an operational voltage of 24V DC and a current per channel of 4A. A single yellow LED is equipped for channel status and dual green LED's for power ON. It is an IP67 rated product. It weighs 1.61kg. The splitter box is suitable for packaging, bottling, assembly and conveying applications. This product is certified by CULus. Its modularity and dimensions mean they are the ideal solution for a wide variety of customer applications.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Advantys ABE9 |
|---|---|
| Number Of Channels | 8 |
| Product Or Component Type | IP67 passive splitter box |
| Status Led | 1 LED per channel (yellow) channel status || 2 LEDs (green) power ON |
|---|---|
| Electrical Connection | 1 pre-wired cable connector, 5 m || 8 female connectors M12 5 pins |
Complementary
| Separation Of Commons | without or with |
|---|---|
| Current Per Channel | 4 A |
| Number Of Ways | 16 ways |
| Fixing Mode | M4 screw fixing |
| Net Weight | 1.61 kg |
| Current Of Common | 16 A 1-1 mm² || 12 A 0.75-0.75 mm² |
|---|---|
| Insulation Group | category 3 VDE 0110 |
| [Ue] Rated Operational Voltage | 24 V DC |
| Operating Position | any position |
| Contact Resistance | 5000 µOhm |
Environment
| Product Certifications | cULus |
|---|---|
| Ambient Air Temperature For Storage | -40-85 °C |
| Vibration Resistance | 0.2 gn 57-150 Hz)IEC 68-2-6, FC tests |
| Ambient Air Temperature For Operation | -20-80 °C |
|---|---|
| Shock Resistance | 30 gn 11 ms EN 68-2-2 |
| Ip Degree Of Protection | IP67 IEC 529 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| China Rohs Regulation | X |
|---|---|
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Free Of Svhc | Yes |
| Rohs Exemption Information | Yes |
|---|---|
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
