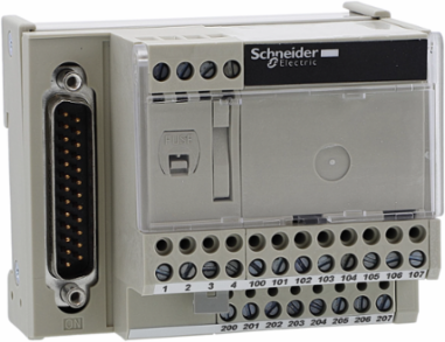

Telemecanique Sensors ABE7CPA21 Modicon ABE7 Connection Sub-Base for 4 Analog Channels, IP20 Rated, 0.18 kg
- MPN: ABE7CPA21
- PPN: SCH-ABE7CPA21
CAD
$104.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This product consists in a connection sub-base for distribution of 4 analogue output channels. It is furnished with screw type terminals for electrical connection and 25-way D-Sub (DB-25) connection to PLC. It is an IP20 rated product. It weighs 0.18kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. This connection sub-base is suitable for use with Modicon Premium TSXAEY420 and TSXASY410 PLC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Modicon ABE7
- Connections - Terminals
- screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end || screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end || screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
Product Or Component Typeconnection sub-base for counter and analogue channels
Number Of Channels4
Complementary
- Installation Category
- II IEC 60664-1
- Fixing Mode
- by clips (35 mm symmetrical DIN rail) || by screws (solid plate with fixing kit)
- Product Compatibility
- Premium TSXAEY420 || Premium TSXASY410
- [Ui] Rated Insulation Voltage
- 2000 V terminals/mounting rails
Net Weight0.18 kg
Tightening Torque0.6 N.m flat Ø 3.5 mm
Connection To PlcSUB-D 25
Function Of Moduleanalogue output current Premium || analogue output voltage Premium
Environment
- Product Certifications
- DNV || GL || CSA || UL || EAC
- Ambient Air Temperature For Operation
- 0-60 °C IEC 61131-2
- Vibration Resistance
- 2 gn 10-150 Hz)IEC 60068-2-6
- Pollution Degree
- 2 IEC 60664-1
- Ambient Air Temperature For Storage
- -40-80 °C IEC 61131-2
- Protective Treatment
- TC
Resistance To Radiated Fields10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Shock Resistance15 gn 11 ms IEC 60068-2-27
Ip Degree Of ProtectionIP20 IEC 60529
Resistance To Incandescent Wire750 °C 30 s IEC 60695-2-11
Resistance To Electrostatic Discharge4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
Resistance To Fast Transients2 kV level 3 IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121229EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1212029EN
