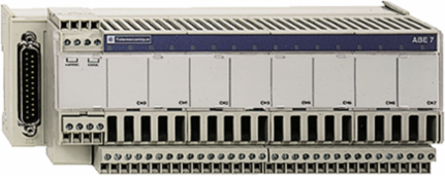

Telemecanique Sensors ABE7CPA31E Modicon ABE7 Connection Sub-Base, 8 Analog Channels, 24V DC
Telemecanique Sensors ABE7CPA31E Modicon ABE7 Connection Sub-Base, 8 Analog Channels, 24V DC
- MPN: ABE7CPA31E
- PPN: SCH-ABE7CPA31E
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1445.40/ EA
Description
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. It is for distribution of 8 analog input channels. It is a sub-base with a control circuit voltage of 24V DC. The distributed analog input channels are isolated from one another. It is furnished with spring type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is an IP20 rated product. It weighs 0.41kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. It meets CSA C22.2, IEC 61131 and UL 508 standards. This connection sub-base is suitable for use with Modicon X80 IO modules such as BMXAMI0800, BMXAMI0810 and BMEAHI0812. It is delivered in 1 package (PCE type). The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Specifications
Environment
- Pollution Degree
- 2 IEC 60664-1
- Ambient Air Temperature For Storage
- -40-80 °C IEC 61131-2
- Resistance To Electrostatic Discharge
- 4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Protective Treatment
- TC
- Ip Degree Of Protection
- IP20 IEC 60529
Resistance To Incandescent Wire750 °C 30 s IEC 60695-2-11
Resistance To Radiated Fields10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Ambient Air Temperature For Operation0-60 °C IEC 61131-2
Vibration Resistance2 gn 10-150 Hz)IEC 60068-2-6
Resistance To Fast Transients2 kV level 3 IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Complementary
- [Uc] Control Circuit Voltage
- 24 V DC
- Installation Category
- II IEC 60664-1
- [Ui] Rated Insulation Voltage
- 2000 V terminals/mounting rails
- Fixing Mode
- by clips (35 mm symmetrical DIN rail) || by screws (solid plate with fixing kit)
Tightening Torque0.6 N.m flat Ø 3.5 mm
Connection To PlcSUB-D 25
Net Weight0.41 kg
Function Of Moduleisolated analogue input Premium
Specifications
- Connections - Terminals
- spring terminal, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || spring terminal, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || spring terminal, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end
- Number Of Channels
- 8
Range Of ProductModicon ABE7
Product Or Component Typeconnection sub-base for counter and analogue channels
