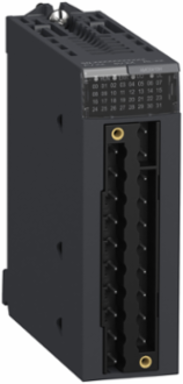

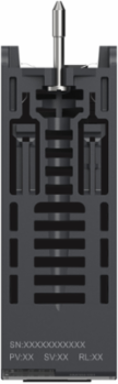

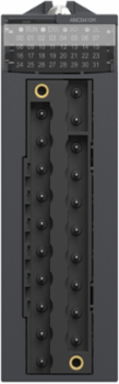

Schneider Electric BMXAMO0410H Analog Isolated Output Module 4 Outputs 0-20mA 4-20mA 10V IP20
- MPN: BMXAMO0410H
- PPN: SCH-BMXAMO0410H
CAD
$2355.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This isolated analogue output module has 4 outputs with 15bit + sign resolution. It is an output module which work with internal power supply via rack. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.15kg. It is suitable for severe environments, medium to large process applications. This product is certified by IEC-Ex, ATEX, EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Complementary Attributes
- Maximum Conversion Value
- +/- 10.5 V +/- 10 V, +/- 10.5 V +/- 10 V, 0...21 mA 0...20 mA, 0...21 mA 4...20 mA, +/- 10.5 V +/- 10 V, +/- 10.5 V +/- 10 V
Minimum Crosstalk Attenuation80 dB
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Conversion Time
- <= 1 ms, <= 1 ms
- Detection Type
- open circuit 0...20 mA, open circuit 4...20 mA, short circuit +/- 10 V
- Fallback Mode
- configurable, predefined
- Load Impedance Ohmic
- >= 1000 Ohm +/- 10 V, >= 1000 Ohm +/- 10 V, <= 500 Ohm 0...20 mA, <= 500 Ohm 0...20 mA, <= 500 Ohm 4...20 mA, <= 500 Ohm 4...20 mA>= 1000 Ohm +/- 10 V, >= 1000 Ohm +/- 10 V, <= 500 Ohm 0...20 mA, <= 500 Ohm 0...20 mA, <= 500 Ohm 4...20 mA
- Power Consumption In W
- 3 W 24 V DC typical, 3.6 W 24 V DC maximum, 0.45 W 3.3 V DC typical, 0.51 W 3.3 V DC maximum
- Status Led
- 1 LED (Green) RUN, 1 LED per channel (Green) channel diagnostic, 1 LED (Red) ERR, 1 LED (Red) I/O
- Certificate Agency
- CE, RCM, CSA, EAC, Merchant Navy, UL, ATEX, IEC-Ex
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4 kg CO2 eq., 0.3939221818
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 28 kg CO2 eq., 28.3648727273
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2311046EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2438
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Common Mode Rejection
- 100 dB
- Mtbf Reliability
- 1000000 H
- Product Or Component Type
- analog output module
- Range Of Product
- Modicon X80
- Shock Resistance
- 30 gn
- Supply
- internal power supply via rack
- Total Lifecycle Carbon Footprint
- 206 kg CO2 eq.
- Pep Code
- ENVPEP2311046EN
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Recyclability Potential, In %
- 3
- Package Weight(Lbs)
- 222.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Current Consumption150 mA 3.3 V DC, 140 mA 24 V DC
Environmental Characteristicgas resistant class Gx, gas resistant class 3C4, dust resistant class 3S4, sand resistant class 3S4, salt resistant level 2, mold growth resistant class 3B2, fungal spore resistant class 3B2, hazardous location
Isolation Voltage1400 V DC between channels and ground, 1400 V DC between channels and bus, 750 V DC between channels
Measurement Error<= 0.45 % of full scale - 25...70 °C, <= 0.45 % of full scale - 25...70 °C0.1 % of full scale 25 °C, <= 0.45 % of full scale - 25...70 °C, <= 0.45 % of full scale - 25...70 °C
Protective Treatmentconformal coating, conformal coating
Temperature Drift45 ppm/°C +/- 10 V, 45 ppm/°C 0...20 mA, 45 ppm/°C 4...20 mA
Carbon Footprint Of The Distribution Phase [A4]0.0290295273, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0591138909, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]177 kg CO2 eq., 177.3396368715
Local Publishable Date2026-02-11
Stocking FlagN
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Electrical Connection20 ways 1 connector
Product AvailabilityStock - Normally stocked in distribution facility
Product Specific Applicationfor severe environments
ReturnabilityYes
Software Versionv5.9.4
Sustainable PackagingYes
Vibration Resistance3 gn
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
Functional-unit UnitUnit
Energy Consumption On Product Lifetime, In Kwh271.998
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Nbr. Of Units In Pkg.1
Take-backNo
Water Use (M3 Eq) Manufacturing [A1-a3]78647.2
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 206.1865751988
- Environmental Disclosure
- ENVPEP2311046EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Operating Altitude0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2311046EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2311046EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- analog output module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001420
ETIM 9EC001420
Output Attributes
- Analogue Output Number
- 4, 4
- Analogue Output Resolution
- 15 bits + sign
Analogue Output Typecurrent 0...20 mA, current 4...20 mA, voltage +/- 10 V
Output Levelhigh level
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Output Isolation
- isolated, isolated
