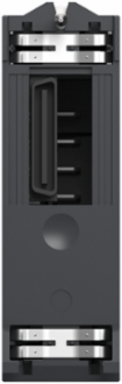

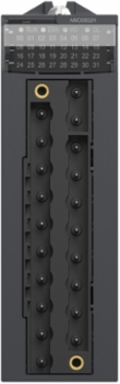

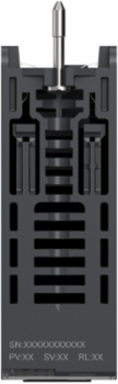

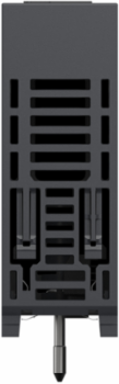

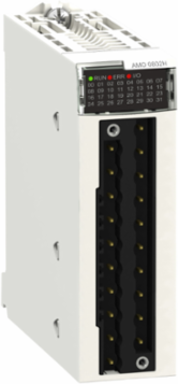

Schneider Electric BMXAMO0802H Modicon X80 Analog Output Module, 8 Outputs, 0-20mA, IP20
- MPN: BMXAMO0802H
- PPN: SCH-BMXAMO0802H
CAD
$2593.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric BMXAMO0802H Modicon X80 Analog Output Module is engineered to enhance control systems with its eight outputs, each providing a reliable 0-20mA signal. Designed for flexibility and efficiency, this module is an essential component for precise analog control in various applications. Its IP20 rating ensures adequate protection in less demanding environments, allowing for seamless integration into your existing setup. With the Modicon X80 series, users can count on robust performance, making it an excellent choice for demanding automation tasks.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Complementary Attributes
- Maximum Conversion Value
- 0...21 mA 0...20 mA, 0...21 mA 4...20 mA
Minimum Crosstalk Attenuation80 dB
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Conversion Time
- <= 4 ms, <= 4 ms
- Fallback Mode
- configurable, predefined
- Load Impedance Ohmic
- <= 350 Ohm 0...20 mA, <= 350 Ohm 0...20 mA, <= 350 Ohm 4...20 mA, <= 350 Ohm 4...20 mA<= 350 Ohm 0...20 mA, <= 350 Ohm 0...20 mA, <= 350 Ohm 4...20 mA
- Power Consumption In W
- 3.6 W 24 V DC typical3.9 W 24 V DC maximum0.35 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum
- Status Led
- 1 LED (Green) RUN1 LED per channel (Green) channel diagnostic1 LED (Red) ERR, 1 LED (Red) I/O
- Certificate Agency
- Merchant Navy, ATEX, CE, CSA, EAC, RCM, IEC-Ex, UL
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3 kg CO2 eq., 0.3193963636
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 23 kg CO2 eq., 22.9985454545
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2311046EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1946
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Industrial
- Common Mode Rejection
- 80 dB
- Detection Type
- open circuit 4...20 mAshort circuit 0...20 mA
- Mtbf Reliability
- 1500000 H
- Product Or Component Type
- analog output module
- Range Of Product
- Modicon X80
- Shock Resistance
- 30 gn
- Supply
- internal power supply via rack
- Total Lifecycle Carbon Footprint
- 226 kg CO2 eq.
- Pep Code
- ENVPEP2311046EN
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Recyclability Potential In %
- 3
- Package Weight(Lbs)
- 180.000 g
- Warranty (In Months)
- 18
- Customs Code
- 8538908180
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Environmental Characteristicgas resistant class Gx, gas resistant class 3C4dust resistant class 3S4, sand resistant class 3S4salt resistant level 2mold growth resistant class 3B2, fungal spore resistant class 3B2hazardous location class I division 2
Isolation Voltage1400 V DC between channels and ground, 1400 V DC between channels and bus
Measurement Error<= 0.45 % of full scale - 25...70 °C, <= 0.45 % of full scale - 25...70 °C<= 0.45 % of full scale - 25...70 °C, <= 0.45 % of full scale - 25...70 °C0.1 % of full scale 25 °C
Protective Treatmentconformal coating, conformal coating
Temperature Drift45 ppm/°C 0...20 mA, 45 ppm/°C 4...20 mA
Carbon Footprint Of The Distribution Phase [A4]0.0235374545, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0479301818, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]203 kg CO2 eq., 203.0410335196
Local Publishable Date2026-06-14
Stocking FlagN
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Current Consumption150 mA 3.3 V DC135 mA 24 V DC
Electrical Connection20 ways 1 connector
Product AvailabilityStock - Normally stocked in distribution facility
Product Specific Applicationfor severe environments
ReturnabilityYes
Software Versionv5.9.4
Sustainable PackagingYes
Vibration Resistance3 gn
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh311.418
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Nbr. Of Units In Pkg.1
Take-backNo
Water Use (M3 Eq) Manufacturing [A1-a3]63768
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 226.4304429741
- Environmental Disclosure
- ENVPEP2311046EN
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2311046EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2311046EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...6561.68 ft (0...2000 m)2000...5000 m with derating factor
Packaging Without Single Use PlasticYes
Relative Humidity5-95 % 55-55 °C without condensation
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- analog output module
Range Of ProductModicon X80
