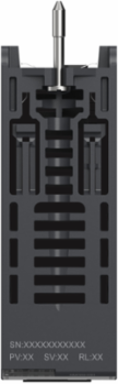

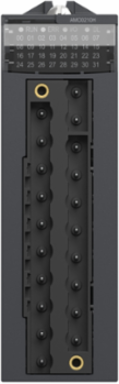

Schneider Electric BMXAMO0210H Isolated Analog Output Module X80 - 2 Outputs, High Level, IP20

MPN: BMXAMO0210H
PPN: SCH-BMXAMO0210H

$1512.62

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric BMXAMO0210H Isolated Analog Output Module is expertly designed to enhance automation and control processes with its two high-level outputs, making it an essential component for modern industrial applications. This module, part of the X80 series, offers reliable isolation which is critical for protecting sensitive equipment and ensuring stable performance in demanding environments. With an IP20 rating, it is ideally suited for use in control panels, allowing integration into a variety of setups. Engineered for efficiency and reliability, this I/O module facilitates seamless data acquisition and control, helping to optimize operational workflows.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil

Complementary Attributes

Maximum Conversion Value	+/- 11.25 V +/- 10 V, +/- 11.25 V +/- 10 V, +/- 11.25 V +/- 10 V, +/- 11.25 V +/- 10 V0...24 mA 0...20 mA, 0...24 mA 4...20 mA

Minimum Crosstalk Attenuation	90 dB

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Conversion Time	<= 1 ms, <= 1 ms
Environmental Characteristic	gas resistant class Gx, gas resistant class 3C4dust resistant class 3S4, sand resistant class 3S4salt resistant level 2mold growth resistant class 3B2, fungal spore resistant class 3B2, hazardous location
Isolation Voltage	1400 V DC between channels and ground, 1400 V DC between channels and bus750 V DC between channels
Measurement Error	<= 0.45 % of full scale - 25...70 °C, <= 0.45 % of full scale - 25...70 °C, 0.1 % of full scale 25 °C, <= 0.45 % of full scale - 25...70 °C, <= 0.45 % of full scale - 25...70 °C
Protective Treatment	conformal coating, conformal coating
Certificate Agency	CE, RCM, CSA, EAC, Merchant Navy, UL, ATEX, IEC-Ex
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.3 kg CO2 eq., 0.3247196364
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	23 kg CO2 eq., 23.3818545455
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2311046EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2438
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Industrial
Common Mode Rejection	100 dB
Electrical Connection	20 ways 1 connector
Product Availability	Stock - Normally stocked in distribution facility
Product Specific Application	for severe environments
Recalibration	factory calibrated
Shock Resistance	30 gn
Supply	internal power supply via rack
Temperature Drift	30 ppm/°C
Vibration Resistance	3 gn
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
Functional-unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	193.158
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Nbr. Of Units In Pkg.	1
Take-back	No
Water Use (M3 Eq) Manufacturing [A1-a3]	64830.8

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Detection Type	open circuit 0...20 mA, open circuit 4...20 mAshort circuit +/- 10 V
Fallback Mode	configurable, predefined
Load Impedance Ohmic	<= 600 Ohm 0...20 mA, <= 600 Ohm 0...20 mA, <= 600 Ohm 4...20 mA, <= 600 Ohm 4...20 mA, >= 1000 Ohm +/- 10 V, >= 1000 Ohm +/- 10 V<= 600 Ohm 0...20 mA, <= 600 Ohm 0...20 mA, <= 600 Ohm 4...20 mA, >= 1000 Ohm +/- 10 V, >= 1000 Ohm +/- 10 V
Power Consumption In W	2.1 W 24 V DC typical2.8 W 24 V DC maximum0.35 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum
Status Led	1 LED (Green) RUN1 LED per channel (Green) channel diagnostic1 LED (Red) ERR, 1 LED (Red) I/O
Carbon Footprint Of The Distribution Phase [A4]	0.0239297455, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0487290182, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	126 kg CO2 eq., 125.9368435754
Local Publishable Date	2026-06-14
Stocking Flag	N
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Current Consumption	150 mA 3.3 V DC110 mA 24 V DC
Mtbf Reliability	1300000 H
Product Or Component Type	analog output module
Range Of Product	Modicon X80
Returnability	Yes
Software Version	v5.9.4
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	150 kg CO2 eq.
Pep Code	ENVPEP2311046EN
Pep Verification Date	2023-11-01
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Recyclability Potential In %	3
Package Weight(Lbs)	183.000 g
Warranty (In Months)	18
Customs Code	8538908180

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2311046EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m)2000...5000 m with derating factor
Packaging Without Single Use Plastic	Yes
Relative Humidity	5-95 % 55-55 °C without condensation
Pep Verification Date	2023-11-01
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	149.7160765209
Environmental Disclosure	ENVPEP2311046EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2311046EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
