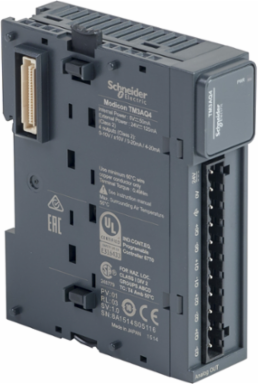

Schneider Electric TM3AQ4 Analog Output Module, 4 Outputs, 24V DC, IP20, Compact Size 23.6mm x 70mm x 90mm

MPN: TM3AQ4
PPN: SCH-TM3AQ4

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$430.03

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Analog Output Module, 4 Outputs, 24V DC, IP20, Compact Size 23.6mm x 70mm x 90mm

Features

Part of the versatile Modicon TM3 range, this 4-channel analog output module expands the physical control capacity of your automation setup. It converts internal digital logic into precise 12-bit (or 11-bit + sign) analog signals across 4 independent channels, allowing you to accurately modulate variable speed drives (VFDs), proportional valves, and industrial dampers.
This flexible hardware card supports a comprehensive range of electrical outputs, including 0...10 V and -10...+10 V voltage ranges, as well as 0...20 mA and 4...20 mA current loops. This wide configuration versatility allows you to command diverse downstream instrumentation from different manufacturers using a single, standardized expansion card.
Engineered for seamless plug-and-play integration, this module features a built-in bus expansion connector that interfaces directly with Modicon M221, M241, M251, and M262 logic controllers. It snaps securely onto the right side of the CPU base, establishing instant bus communication and power distribution without requiring external data patch cables.
The module boasts a rapid conversion time of just 1 ms per channel, ensuring near-instantaneous synchronization between the controller's logic and your field actuators. This high-speed performance eliminates lag in critical PID control loops, ensuring stable pressure, flow, and temperature regulation across fast-cycling industrial processes.
Housed in an ultra-slim 23.6 mm wide enclosure, this compact block optimizes layout density within crowded electrical control cabinets. It mounts natively on standard 3.5 mm symmetrical DIN rails and features a removable screw terminal block, which simplifies initial wire routing and allows for rapid field swaps without disconnecting individual field wires.
o safeguard your expensive central logic controller, this module incorporates robust photoelectric isolation rated at 1500 V AC between the internal electronics and the external analog output channels. This high-dielectric barrier blocks destructive high-voltage ground loops and field spikes, preventing catastrophic back-feed damage to the primary CPU.
Carrying comprehensive multi-market approvals including cULus, CSA, CE, UKCA, and RCM. It is built to operate reliably in ambient factory-floor temperatures ranging from -10 C up to 55 C, providing machine builders with verified safety and performance across Canadian infrastructure projects.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Japan, Singapore, United States

Depth	70 mm

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Cross Talk	<= 1 LSB, <= 1 LSB
Typical Current Consumption	40 mA 5 V DC no load50 mA 5 V DC full load, 50 mA 24 V DC no load, 125 mA 24 V DC full load
Non-linearity	+/- 0.2 %FS, +/- 0.2 %FS
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.5341846124131088, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	14 kg CO2 eq., 14.434905846397077
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Field Service Division	IDIBS
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Conversion Time	1 ms + 1 ms per channel + 1 controller cycle time
Electromagnetic Emission	radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
Immunity To Microbreaks	10 ms
Load Impedance Ohmic	1 kOhm voltage300 Ohm current
Local Signalling	1 LED green PWR
Marking	CE
Product Availability	Stock - Normally stocked in distribution facility
Radio Standard Bluetooth	false
Radio Standard Gsm	false
Range Of Product	Modicon TM3
Returnability	Yes
Software Version	v6.1
Supporting Protocol For Asi	false
Supporting Protocol For Devicenet	false
Supporting Protocol For Ethercat	false
Supporting Protocol For Interbus	false
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	false
Supporting Protocol For Profinet Cba	false
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	61 kg CO2 eq.
Vibration Resistance	3.5 mm 5-8.4 Hz) on DIN rail3 gn 8.4-150 Hz) on DIN rail
Certified For Ul Hazardous Location Class I	false
Certified For Ul Hazardous Location Class Iii	false
Certified For Ul Hazardous Location Division 2	false
Fieldbus Connection Over Separate Bus Coupler Possible	false
Pep Code	ENVPEP1402009EN
Pep Verification Date	2024-06-01
Psr Version	PSR-0005-ed3-EN-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; China, CN
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; China, CN
Height Nominal	90 mm
Appendant Operation Agent (Ex Ia)	false
Certified For Ul Hazardous Location Group A (Acetylene)	false
Certified For Ul Hazardous Location Group C (Ethylene))	false
Certified For Ul Hazardous Location Group E (Metal Dusts)	false
Certified For Ul Hazardous Location Group G (Non Conductive Dust)	false
Performance Level According To En Iso 13849-1	none
Radio Standard Wi-fi 802.11	false
Supporting Protocol For Data-highway	false
Supporting Protocol For Interbus-safety	false
Wall Mounting/Direct Mounting Possible	false
Package Weight(Lbs)	200.000 g
Warranty (In Months)	18

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Mounting Support	top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Certificate Agency	CE, UKCA, RCM, EAC, cULus, cULus HazLoc
Carbon Footprint Of The Distribution Phase [A4]	0.04988872964154122, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.0058833718780732834
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	46 kg CO2 eq., 45.53523314102323
Local Publishable Date	2026-03-26
Stocking Flag	Y
Device Type	PLC System - PLC Component
Traceability	Yes
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1402009EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Bearing Track Assembly Possible	false
Electrical Connection	11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for outputs and supply
Front Installation Possible	false
Insulation	between output and supply 1500 V ACbetween output and internal logic 500 V AC
Load Type	resistive
Lsb Value	2.44 mV, 0...10 V4.88 mV, - 10...10 V4.88 µA, 0...20 mA3.91 µA, 4...20 mA
Network Type	DC
Product Or Component Type	analog output module
Radio Standard Gprs	false
Radio Standard Umts	false
Repeat Accuracy	+/- 0.4 %FS+/- 0.4 %FS
Shock Resistance	15 gn 11 ms
Stabilisation Time	1 ms
Supporting Protocol For Can	false
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	false
Supporting Protocol For Profibus	false
Supporting Protocol For Profinet Io	false
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Temperature Drift	+/- 0.01 %FS/°C+/- 0.01 %FS/°C
Type Of Cable	twisted shielded pairs cable <30 m output
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Certified For Ul Hazardous Location Class Ii	false
Certified For Ul Hazardous Location Division 1	false
Dc Supply Voltage	24-24 V
System Accessory	false
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To enhance the capabilities of Modicon M221, M262, M241 and M251 logic controllers by creating configurations with up to 264 digital I/O and up to 114 analog I/O, 57.20% of the time for 10 years.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Taiwan, TW
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; China, CN
Recyclability Potential In %	3
Width Nominal	23.6 mm
Appendant Operation Agent (Ex Ib)	false
Certified For Ul Hazardous Location Group B (Hydrogen)	false
Certified For Ul Hazardous Location Group D (Propane))	false
Certified For Ul Hazardous Location Group F (Carbonaceous Dust)	false
Io-link Master Present	false
Rack-assembly Possible	false
Supporting Protocol For As-interface Safety At Work	false
Supporting Protocol For Ethernet/Ip	false
Supporting Protocol For Tcp/Ip	false
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908180

Environment Attributes Main

Ambient Air Temperature For Operation	-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation), -10-35 °C vertical installation)-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation)
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	60.56009570135303
Circularity Profile	ENVEOLI1402009EN
Eu Rohs Directive	Compliant
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	Yes
Relative Humidity	10-95 % without condensation
Pep Verification Date	2024-06-01
Psr Version	PSR-0005-ed3-EN-2023 06 06

Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Ambient Air Temperature For Storage	-25-70 °C-25-70 °C
Environmental Disclosure	ENVPEP1402009EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1402009EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
