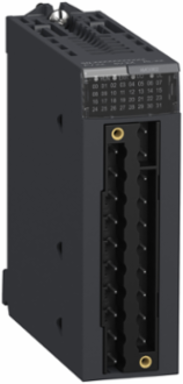

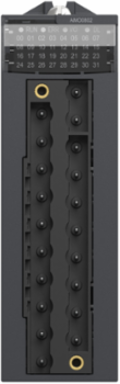

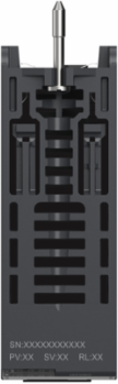

Schneider Electric BMXAMO0802 Modicon X80 Analog Output Module, 8 Outputs, 0-20mA, IP20

  • MPN: BMXAMO0802
  • PPN: SCH-BMXAMO0802
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $2081.58

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue output module has 8 outputs with 16bit resolution. It is an output module which work with internal power supply via rack. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.15kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance

    Complementary Attributes

    Maximum Conversion Value0...21 mA 0...20 mA, 0...21 mA 4...20 mA
    Minimum Crosstalk Attenuation80 dB

    Important Information Attributes

    Persona Type IdsEU, OM8, SI
    Conversion Time<= 4 ms, <= 4 ms
    Isolation Voltage1400 V DC between channels and ground, 1400 V DC between channels and bus
    Measurement Error<= 0.25 % of full scale 0...60 °C, <= 0.25 % of full scale 0...60 °C<= 0.25 % of full scale 0...60 °C, <= 0.25 % of full scale 0...60 °C0.1 % of full scale 25 °C
    Protective Treatmentstandard version, standard version
    Temperature Drift45 ppm/°C 0...20 mA, 45 ppm/°C 4...20 mA
    Carbon Footprint Of The Distribution Phase [A4]0.0220990545, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0450011152, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]203 kg CO2 eq., 203.0410335196
    Local Publishable Date2026-03-25
    Stocking FlagY
    Device TypePLC System - PLC Component
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Current Consumption150 mA 3.3 V DC135 mA 24 V DC
    Electrical Connection20 ways 1 connector
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductModicon X80
    Shock Resistance30 gn
    Supplyinternal power supply via rack
    Total Lifecycle Carbon Footprint225 kg CO2 eq.
    Pep CodeENVPEP2311046EN
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Recyclability Potential In %3
    Package Weight(Lbs)169.000 g
    Warranty (In Months)18
    Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
    Fallback Modeconfigurable, predefined
    Load Impedance Ohmic<= 350 Ohm 0...20 mA, <= 350 Ohm 0...20 mA, <= 350 Ohm 4...20 mA, <= 350 Ohm 4...20 mA<= 350 Ohm 0...20 mA, <= 350 Ohm 0...20 mA, <= 350 Ohm 4...20 mA
    Power Consumption In W3.6 W 24 V DC typical3.9 W 24 V DC maximum0.35 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum
    Status Led1 LED (Green) RUN1 LED per channel (Green) channel diagnostic1 LED (Red) ERR, 1 LED (Red) I/O
    Certificate AgencyCE, RCM, CSA, EAC, Merchant Navy, UL
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.299877697
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]22 kg CO2 eq., 21.5930787879
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2311046EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2438
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Common Mode Rejection80 dB
    Detection Typeopen circuit 4...20 mAshort circuit 0...20 mA
    Mtbf Reliability1500000 H
    Product Or Component Typeanalog output module
    ReturnabilityYes
    Software Versionv5.9.4
    Sustainable PackagingYes
    Vibration Resistance3 gn
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionThe Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh311.418
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8538908180

    Environment Attributes Main

    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint225.0010901741
    Circularity ProfileENVEOLI2311046EN
    Eu Rohs DirectiveCompliant By Exemption
    Operating Altitude0...6561.68 ft (0...2000 m)2000...5000 m with derating factor
    Packaging Without Single Use PlasticYes
    Relative Humidity5-95 % 55-55 °C without condensation
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation0-60 °C
    Environmental DisclosureENVPEP2311046EN
    Ip Degree Of ProtectionIP20
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP2311046EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typeanalog output module
    Range Of ProductModicon X80

    ETIM

    ETIM 8EC001420
    ETIM 9EC001420

    Output Attributes

    Analogue Output Number8, 8
    Analogue Output Resolution16 bits
    Analogue Output Typecurrent 0...20 mA, current 4...20 mA
    Output Levelhigh level

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Input Attributes

    Input Output Isolationnon isolated, non isolated
    Analogue Input Resolution16 bits
