Schneider Electric BMXAMO0210 Analog Output Module, 2 Outputs, 0-20mA/4-20mA, 10V, IP20

  • MPN: BMXAMO0210
  • PPN: SCH-BMXAMO0210
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1262.83

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

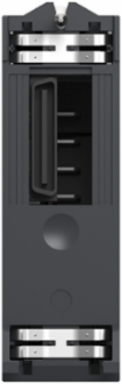

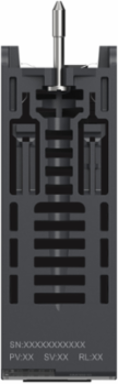

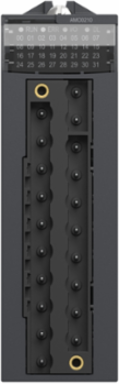

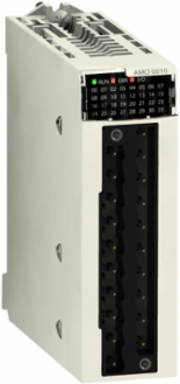

    This analog output module is part of the Modicon X80 modules. It has 2 isolated high level outputs (15 bits + sign). It offers different ranges of voltage or current for each of the outputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil

    Complementary Attributes

    Maximum Conversion Value+/- 11.25 V +/- 10 V, +/- 11.25 V +/- 10 V, +/- 11.25 V +/- 10 V, +/- 11.25 V +/- 10 V0...24 mA 0...20 mA, 0...24 mA 4...20 mA
    Minimum Crosstalk Attenuation90 dB

    Important Information Attributes

    Persona Type IdsEU, OM8, SI
    Conversion Time<= 1 ms, <= 1 ms
    Fallback Modepredefined, configurable
    Load Impedance Ohmic<= 600 Ohm 0...20 mA, <= 600 Ohm 0...20 mA, <= 600 Ohm 4...20 mA, <= 600 Ohm 4...20 mA, >= 1000 Ohm +/- 10 V, >= 1000 Ohm +/- 10 V<= 600 Ohm 0...20 mA, <= 600 Ohm 0...20 mA, <= 600 Ohm 4...20 mA, >= 1000 Ohm +/- 10 V, >= 1000 Ohm +/- 10 V
    Power Consumption In W2.1 W 24 V DC typical2.8 W 24 V DC maximum0.35 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum
    Status Led1 LED (Green) RUN1 LED per channel (Green) channel diagnostic1 LED (Red) ERR, 1 LED (Red) I/O
    Carbon Footprint Of The Distribution Phase [A4]0.0234066909, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.047663903, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]126 kg CO2 eq., 125.9368435754
    Local Publishable Date2026-01-23
    Stocking FlagN
    Device TypePLC System - PLC Component
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Current Consumption150 mA 3.3 V DC110 mA 24 V DC
    Mtbf Reliability1300000 H
    Product Or Component Typeanalog output module
    Recalibrationfactory calibrated
    Shock Resistance30 gn
    Supplyinternal power supply via rack
    Temperature Drift30 ppm/°C
    Vibration Resistance3 gn
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionThe Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh193.158
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8538908180
    Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
    Detection Typeopen circuit 0...20 mA, open circuit 4...20 mAshort circuit +/- 10 V
    Isolation Voltage1400 V DC between channels and ground, 1400 V DC between channels and bus750 V DC between channels
    Measurement Error<= 0.2 % of full scale 0...60 °C, <= 0.2 % of full scale 0...60 °C<= 0.2 % of full scale 0...60 °C, <= 0.2 % of full scale 0...60 °C0.1 % of full scale 25 °C
    Protective Treatmentstandard version, standard version
    Certificate AgencyCE, RCM, CSA, EAC, Merchant Navy, UL
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.3176219394
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]23 kg CO2 eq., 22.8707757576
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2311046EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2438
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Common Mode Rejection100 dB
    Electrical Connection20 ways 1 connector
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductModicon X80
    ReturnabilityYes
    Software Versionv5.9.4
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint149 kg CO2 eq.
    Pep CodeENVPEP2311046EN
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Recyclability Potential In %3
    Package Weight(Lbs)173.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint149.1963118663
    Circularity ProfileENVEOLI2311046EN
    Eu Rohs DirectiveCompliant By Exemption
    Operating Altitude0...6561.68 ft (0...2000 m)2000...5000 m with derating factor
    Packaging Without Single Use PlasticYes
    Relative Humidity5-95 % 55-55 °C without condensation
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation0-60 °C
    Environmental DisclosureENVPEP2311046EN
    Ip Degree Of ProtectionIP20
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP2311046EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typeanalog output module
    Range Of ProductModicon X80

    ETIM

    ETIM 8EC001420
    ETIM 9EC001420

    Output Attributes

    Analogue Output Number2, 2
    Analogue Output Resolution15 bits + sign
    Analogue Output Typecurrent 0...20 mA, current 4...20 mAvoltage +/- 10 V
    Output Levelhigh level

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Input Attributes

    Input Output Isolationisolated, isolated
