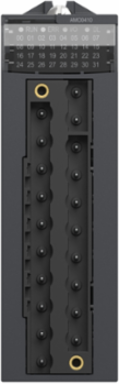

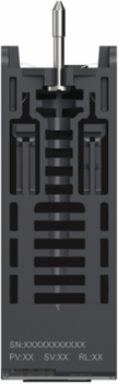

Schneider Electric BMXAMO0410 Modicon X80 Analog Output Module, 4 Outputs, 0-20mA, IP20, 0.15kg

  • MPN: BMXAMO0410
  • PPN: SCH-BMXAMO0410
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1897.22

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This isolated analogue output module has 4 outputs with 15bit + sign resolution. It is an output module which work with internal power supply via rack. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.15kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France

    Complementary Attributes

    Maximum Conversion Value
    +/- 10.5 V +/- 10 V, +/- 10.5 V +/- 10 V, 0...21 mA 0...20 mA, 0...21 mA 4...20 mA, +/- 10.5 V +/- 10 V, +/- 10.5 V +/- 10 V
    Minimum Crosstalk Attenuation80 dB

    Important Information Attributes

    Persona Type Ids
    EU, OM8, SI
    Conversion Time
    <= 1 ms, <= 1 ms
    Detection Type
    open circuit 0...20 mA, open circuit 4...20 mA, short circuit +/- 10 V
    Isolation Voltage
    1400 V DC between channels and ground, 1400 V DC between channels and bus, 750 V DC between channels
    Measurement Error
    <= 0.2 % of full scale 0...60 °C, <= 0.2 % of full scale 0...60 °C<= 0.2 % of full scale 0...60 °C, <= 0.2 % of full scale 0...60 °C, 0.1 % of full scale 25 °C
    Protective Treatment
    standard version, standard version
    Temperature Drift
    45 ppm/°C +/- 10 V, 45 ppm/°C 0...20 mA, 45 ppm/°C 4...20 mA
    Carbon Footprint Of The Distribution Phase [A4]
    0.0275911273, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.0561848242, 0.1 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    177 kg CO2 eq., 177.3396368715
    Local Publishable Date
    2026-03-25
    Stocking Flag
    Y
    Device Type
    PLC System - PLC Component
    Traceability
    Yes
    Average Life Duration
    20 year(s)
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    Electrical Connection
    20 ways 1 connector
    Product Availability
    Stock - Normally stocked in distribution facility
    Range Of Product
    Modicon X80
    Shock Resistance
    30 gn
    Supply
    internal power supply via rack
    Total Lifecycle Carbon Footprint
    205 kg CO2 eq.
    Pep Code
    ENVPEP2311046EN
    Pep Verification Date
    2023-11-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Manufacturing [A1-a3]
    Energy model used: Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Recyclability Potential, In %
    3
    Package Weight(Lbs)
    211.000 g
    Warranty (In Months)
    18
    Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
    Current Consumption150 mA 3.3 V DC, 140 mA 24 V DC
    Fallback Modeconfigurable, predefined
    Load Impedance Ohmic>= 1000 Ohm +/- 10 V, >= 1000 Ohm +/- 10 V, <= 500 Ohm 0...20 mA, <= 500 Ohm 0...20 mA, <= 500 Ohm 4...20 mA, <= 500 Ohm 4...20 mA>= 1000 Ohm +/- 10 V, >= 1000 Ohm +/- 10 V, <= 500 Ohm 0...20 mA, <= 500 Ohm 0...20 mA, <= 500 Ohm 4...20 mA
    Power Consumption In W3 W 24 V DC typical, 3.6 W 24 V DC maximum, 0.45 W 3.3 V DC typical, 0.51 W 3.3 V DC maximum
    Status Led1 LED (Green) RUN, 1 LED per channel (Green) channel diagnostic, 1 LED (Red) ERR, 1 LED (Red) I/O
    Certificate AgencyCE, RCM, CSA, EAC, Merchant Navy, UL
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.3744035152
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]27 kg CO2 eq., 26.9594060606
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2311046EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2438
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Common Mode Rejection100 dB
    Mtbf Reliability1000000 H
    Product Or Component Typeanalog output module
    ReturnabilityYes
    Software Versionv5.9.4
    Sustainable PackagingYes
    Vibration Resistance3 gn
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionThe Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime, In Kwh271.998
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Nbr. Of Units In Pkg.1
    Take-backNo

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -40-85 °C, -40-85 °C
    Operating Altitude
    0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Ambient Air Temperature For Operation
    0-60 °C
    Environmental Disclosure
    ENVPEP2311046EN
    Ip Degree Of Protection
    IP20
    Packaging Without Single Use Plastic
    Yes
    Relative Humidity
    5-95 % 55-55 °C without condensation
    Pep Verification Date
    2023-11-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint204.7572223988
    Circularity ProfileENVEOLI2311046EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP2311046EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    analog output module
    Range Of ProductModicon X80

    ETIM

    ETIM 8
    EC001420
    ETIM 9EC001420

    Output Attributes

    Analogue Output Number
    4, 4
    Analogue Output Resolution
    15 bits + sign
    Analogue Output Typecurrent 0...20 mA, current 4...20 mA, voltage +/- 10 V
    Output Levelhigh level

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Input Output Isolation
    isolated, isolated

    Accessories

    Loading carousel layout...

    Accessories
