Jonard Tools PON-55 Jonard Tools PON-55 Passive Optical Network Power Meter for BPON/EPON/GPON, APC
- MPN: PON-55
- UPC: 810053350348
- PPN: JTL-PON-55
CAD
$744.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

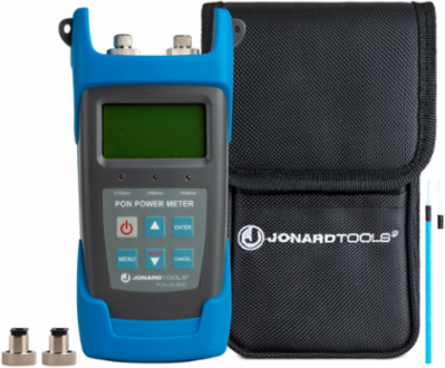

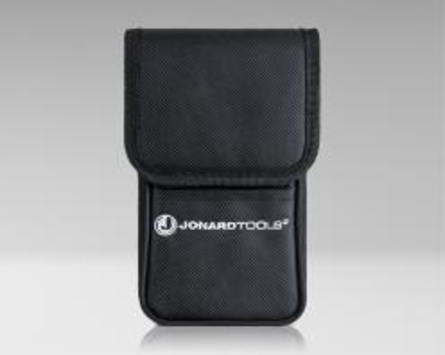

Designed to perform live testing with OLT equipment, this PON Power Meter with APC connectors is perfect for use during FTTx/PON service turn-up or maintenance. It is able to simultaneously test and measure the signal power of voice, data, and video connections, and is essential for the construction and maintenance of PON systems. This Power Meter also features the following: USB port allows quick transfer of data, and up to 1,000 measurement items can be saved at once Optional 10 minute auto-off can be activated or deactivated Shatter-resistant sleeve protects it from accidental falls or other damage Included software allows you to set the thresholds, transfer data, and calibrate the wavelength from your PC Includes: PON Power Meter, (2) APC/FC Adapters, (2) APC/SC Adapters, Carrying Case, Instruction Manual, Mini USB Cable, and (3) AA Batteries Click here for the Software Download
Features
- Includes APC/FC Adapters and APC/SC Adapters to directly connect to UPC/PC FC and SC fiber connectors
- Analyzes voice, data, and video signals in BPON/EPON/GPON FTTx systems
- Concurrently measures 1310 nm Upstream Burst Signals and 1490/1550 nm Downstream Signal Measurements anywhere in the network
- Three pass, warning, and fail LED indicators to allow you to quickly assess your network's power level
- Supports 1310 nm Upstream Burst Signal and 1490/1550 nm Downstream Signal Measurements
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Length
- 9.84 Inch
- Connector Types
- FC/SC (APC)
- Wavelengths
- 1310 nm, 1490 nm, 1550 nm
- Measurement Range
- -35 dBm～+10 dBm @ 1310/1490 nm, -35dBm～+10dBm @ 1550 nm
- Detector Type
- InGaAs
- Linearity (dB)
- ±0.1 dB
- Battery Life
- 90 Hours
- Tool Weight
- 0.93 lb (0.423 kg)
Network TypesBPON/EPON/GPON
Width5.12 Inch
Height2.95 Inch
Weight1.27 Lbs.
Max Output Power15 dBm @ 1310/1490/1550 nm
Connatural Uncertainty (dB)±0.5 dB
Batteries(3) 1.5V AA
Operation Temperature-10℃～60℃
