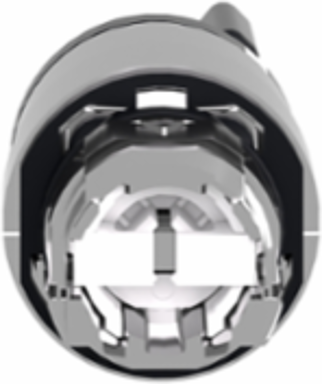

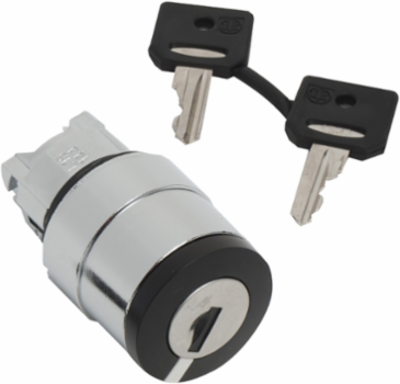

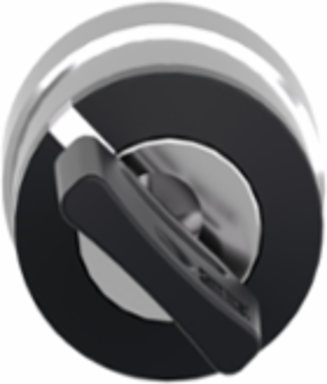

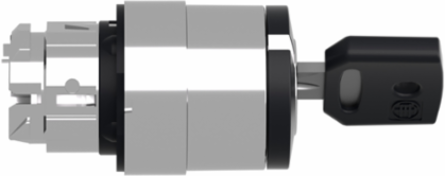

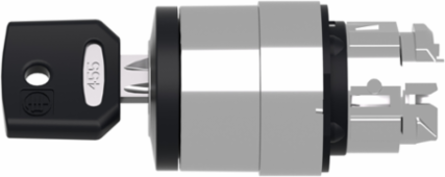

Schneider Electric ZB4BG612 Harmony XB4 Key Selector Switch Head, 22mm, Metal, IP66, Black
Schneider Electric ZB4BG612 Harmony XB4 Key Selector Switch Head, 22mm, Metal, IP66, Black
- MPN: ZB4BG612
- PPN: SCH-ZB4BG612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$78.58/ EA
Description
This Harmony XB4, black head with key (key no.421E) for key selector switch has 2 positions, operates with spring-return-from-right-to-left mechanism with key withdrawal on left position. This head with key provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units to provide a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Secure machine and system operation with a key, only available to authorized operators. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Key removal allowed in only one of the positions, allowing for advanced interlocking between various parts of a machine or process, while limiting human errors.
Specifications
Environment
- Product Certifications
- DNV || LROS (Lloyds register of shipping) || GL || CSA || BV || UL listed
- Standards
- UL 508 || GB 14048.5 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
Ambient Air Temperature For Operation-40-70 °C
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 || IP69 || IP69K
Overvoltage Categoryclass I IEC 60536
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Composition Code
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Cad Overall Height
- 29 mm
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Width
- 29 mm
Net Weight0.098 kg
Device Presentationbasic element
Mechanical Durability1000000 cycles
Cad Overall Depth72 mm
Specifications
- Range Of Product
- Harmony XB4
- Product Or Component Type
- head for key selector switch
- Head Type
- standard
- Sale Per Indivisible Quantity
- 1
- Operator Profile
- black key switch
- Type Of Operator
- spring return
- Device Short Name
- ZB4
Mounting Diameter22 mm
Shape Of Signaling Unit Headround
Key Withdrawal Positionleft
Bezel Materialchromium plated metal
Operator Position Information2 positions 90°
Returnright to left
Type Of Keylockkey 421E
