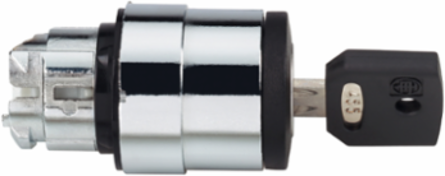

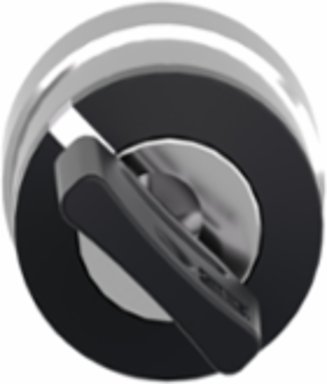

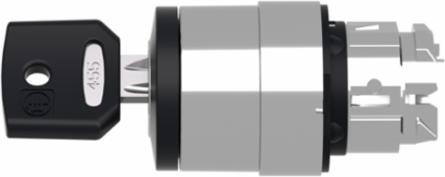

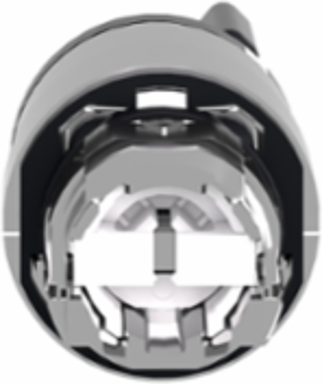

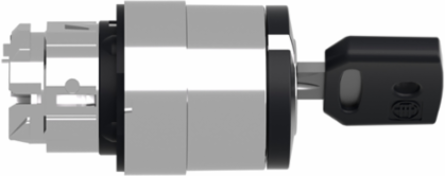

Schneider Electric ZB4BG6 Harmony XB4 22mm Key Selector Switch Head, Metal Black, 2 Positions

MPN: ZB4BG6
PPN: SCH-ZB4BG6

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$94.98

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony XB4, black head with key (key no.455) for key selector switch has 2 positions, operates with spring-return-from-right-to-left mechanism with key withdrawal on left position. This head with key provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units to provide a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Secure machine and system operation with a key, only available to authorized operators. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Key removal allowed in only one of the positions, allowing for advanced interlocking between various parts of a machine or process, while limiting human errors.

Features

This 22mm metal head features a specialized key-actuated mechanism that locks the control switch in place, ensuring only authorized key-holders can toggle your system between states. It is the gold standard for industrial security, preventing accidental startups or tampering in high-stakes manufacturing and commercial environments.
The internal cylinder is specifically configured to allow key removal only in the left (rest) position. This provides a physical layer of security for your control panel, allowing supervisors or authorized personnel to disable the machine and take the key with them, effectively preventing unauthorized operation or tampering by untrained staff during off-shifts.
Built with Schneider s legendary XB4 metal construction, this operator features a heavy-duty chromium-plated metal bezel that resists corrosion, chemical exposure, and mechanical impact. Unlike plastic alternatives, this rugged design maintains its structural integrity and premium feel in high-vibration environments, making it the industry standard for automotive, oil and gas, and heavy industrial automation panels
This key switch is fully sealed to meet IP66, IP67, and IP69K standards, providing total protection against dust ingress and high-pressure water jets. Whether your facility requires daily sanitization or the panel is exposed to the elements, the ZB4BG6 ensures continuous electrical conductivity and mechanical reliability, significantly reducing the risk of circuit failure due to moisture or contaminants.
As part of the modular Harmony XB4 range, this head unit easily snaps onto a standard mounting collar and can be paired with any combination of NO (Normally Open) or NC (Normally Closed) contact blocks. This flexibility allows industrial engineers to tailor the electrical output to their specific logic requirements whether controlling a simple relay or sending a pulse to a PLC without needing specialized tools for installation.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Mexico, United States

Physical Attributes

Cad Overall Depth	72 mm
Cad Overall Width	29 mm

Cad Overall Height	29 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Bezel Material	chromium plated metal, chromium plated metal
Electrical Composition Code	C3 6 single front mountingC4 6 single and double front mountingC5 5 single front mounting, C6 5 single and double front mountingC7 4 single front mounting, C8 4 single and double front mountingC11 3 single front mountingC15 1 single front mounting
Operator Pos Information	2 positions 90°
Carbon Footprint Of The Distribution Phase [A4]	0.012815438596491228, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.012320701754385963, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-03-26
Stocking Flag	N
End Of Life Carbon Footprint	0.242
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308006EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	ZB4
Group Of Product	key switch
Key Withdrawal Position	left
Mechanical Durability	1000000 cycles
Operator Position Information	2 positions 90°
Overvoltage Category	class I conforming to IEC 60536
Product Or Component Type	head for key selector switch
Range Of Product	Harmony XB4
Returnability	Yes
Shape Of Signaling Unit Head	round
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.9 kg CO2 eq.
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep Code	ENVPEP2308006EN
Pep Verification Date	2024-06-09
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27
Cap/Operator Or Lens Colour	black
Package Weight(Lbs)	103.000 g
Warranty (In Months)	18
Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4]	0.242
Customs Code	8538908160

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Customizable	0, no
Return	right to left, right to left
Certificate Agency	CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.2 kg CO2 eq., 0.242
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.6 kg CO2 eq., 0.644638596491228
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	ZB4
Head Type	standard
Main Group	selector switch
Mounting Diameter	22.5 mm
Operator Profile	black key switch
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity	1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Packaging	No
Type Of Keylock	key 455
Keylock Type	key 455
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Key selector switch has 2 positions which operates with a stay-put mechanism with key withdrawal on the left position and it has metal bezel. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. Product has power consumption of 0.002 W with use rate of 72% for a period of 10 years and adhering to international standard IEC 60947-5-1.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %	88
Nbr. Of Units In Pkg.	1
Take-back	No
Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4]	0.242
Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3]	0.0104

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Ip Degree Of Protection	IP66 IEC 60529, IP67, IP69, IP69K
Take Back	No
China Rohs Regulation	X
Carbon Footprint	0.9117747368421052
Environmental Disclosure	ENVPEP2308006EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-06-09
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Nema Degree Of Protection	UL type 4X/13, NEMA 13, NEMA 4X
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2308006EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2308006EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
